Pinion Plug Assembly Note

  1. Tighten the pinion plug using the SST  .

    Tightening torque

    39.2-44.1 N.m {4.00-4.49 kgf.m, 29.0-32.5 ft.lbf}

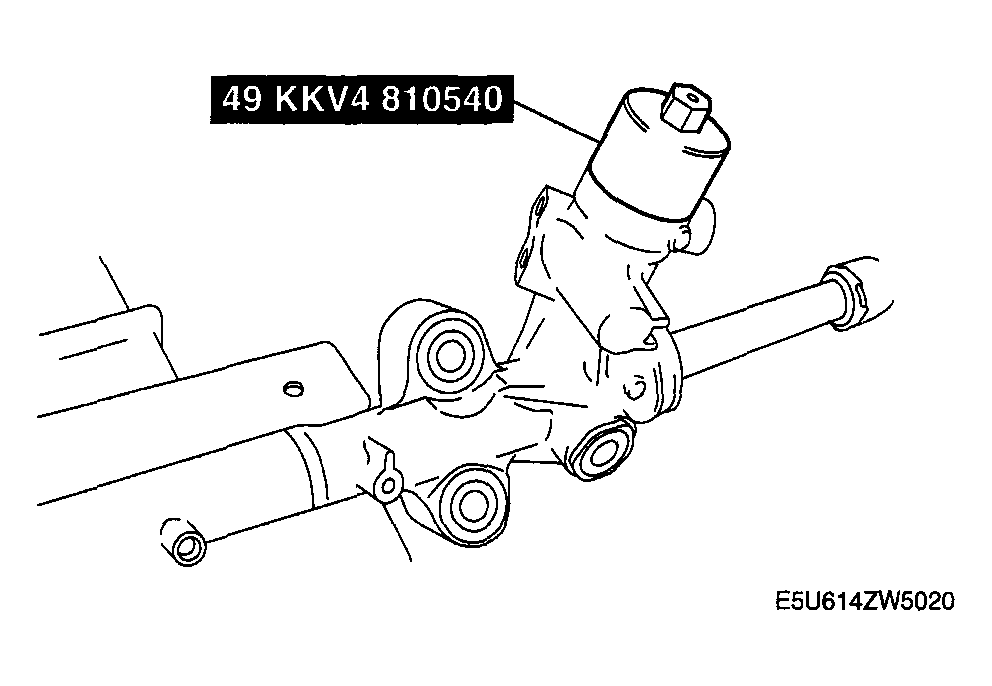

    Fig 1: Tightening Pinion Plug Using SST
    G04318805Courtesy of MAZDA MOTORS CORP.
