Keyless Beeper

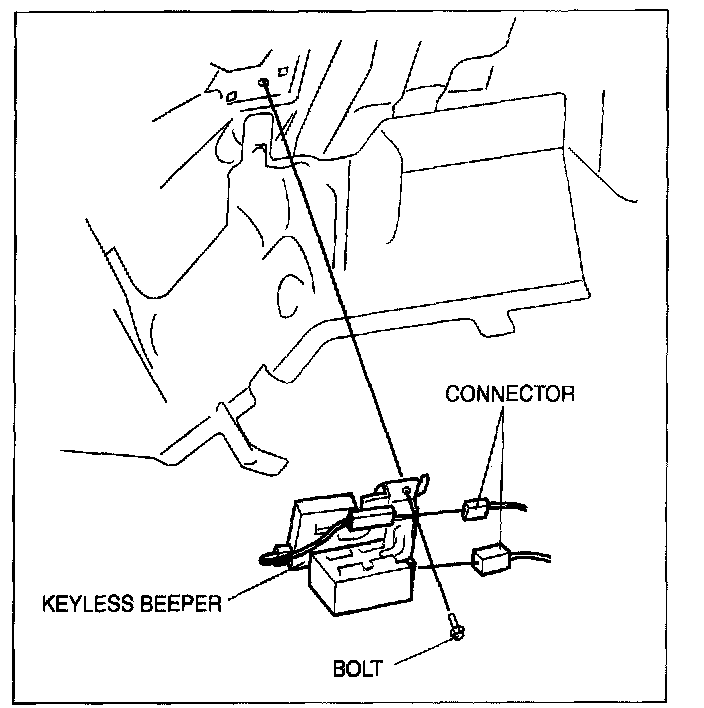

KEYLESS BEEPER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the trunk side trim.
3. Remove the nuts.




4. Disconnect the connector.
5. Remove the keyless beeper.
6. Install in the reverse order of removal.
