Pinout Values and Diagnostic Parameters

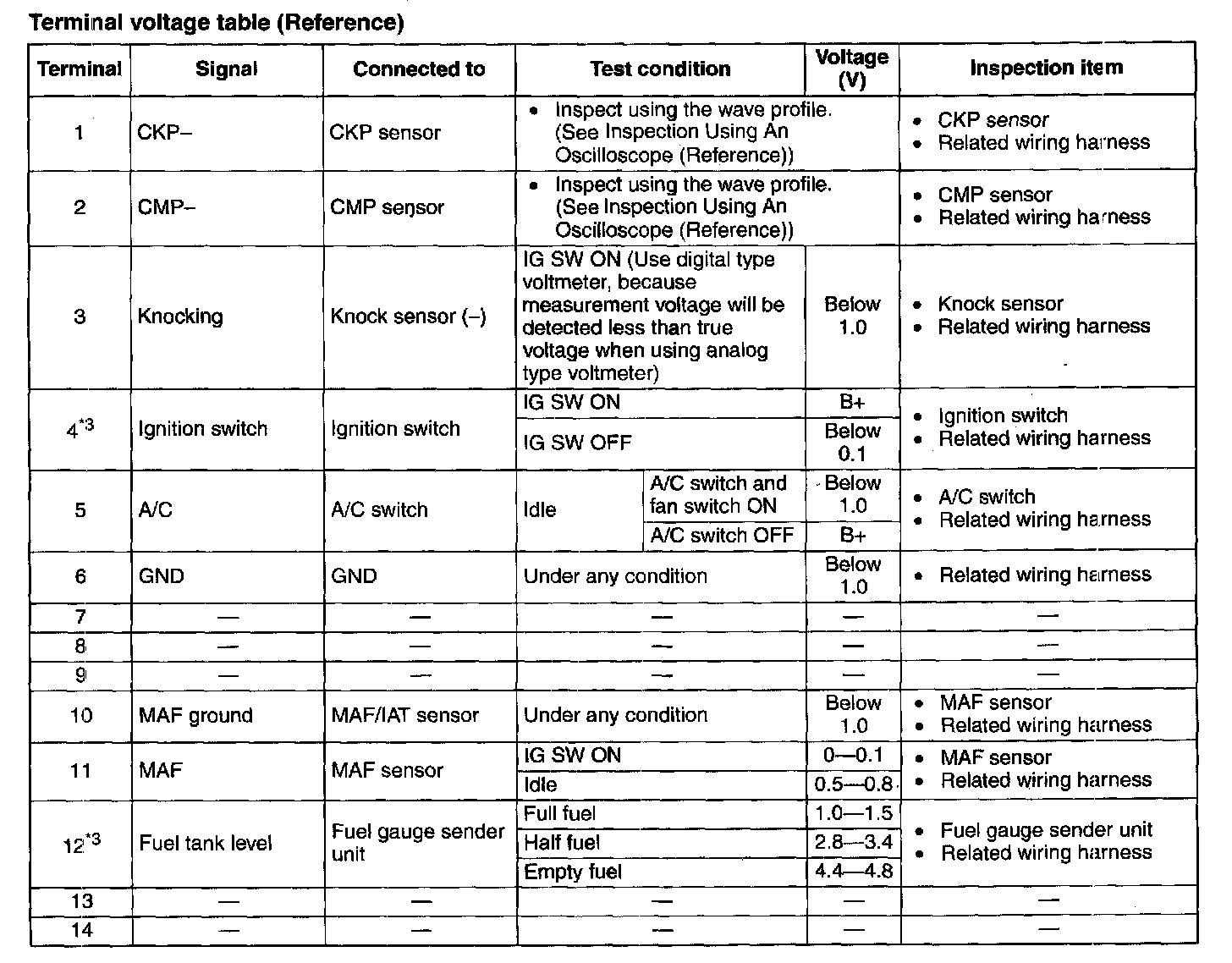

Terminal Voltage Table(Reference) - Terminals (1 - 14):

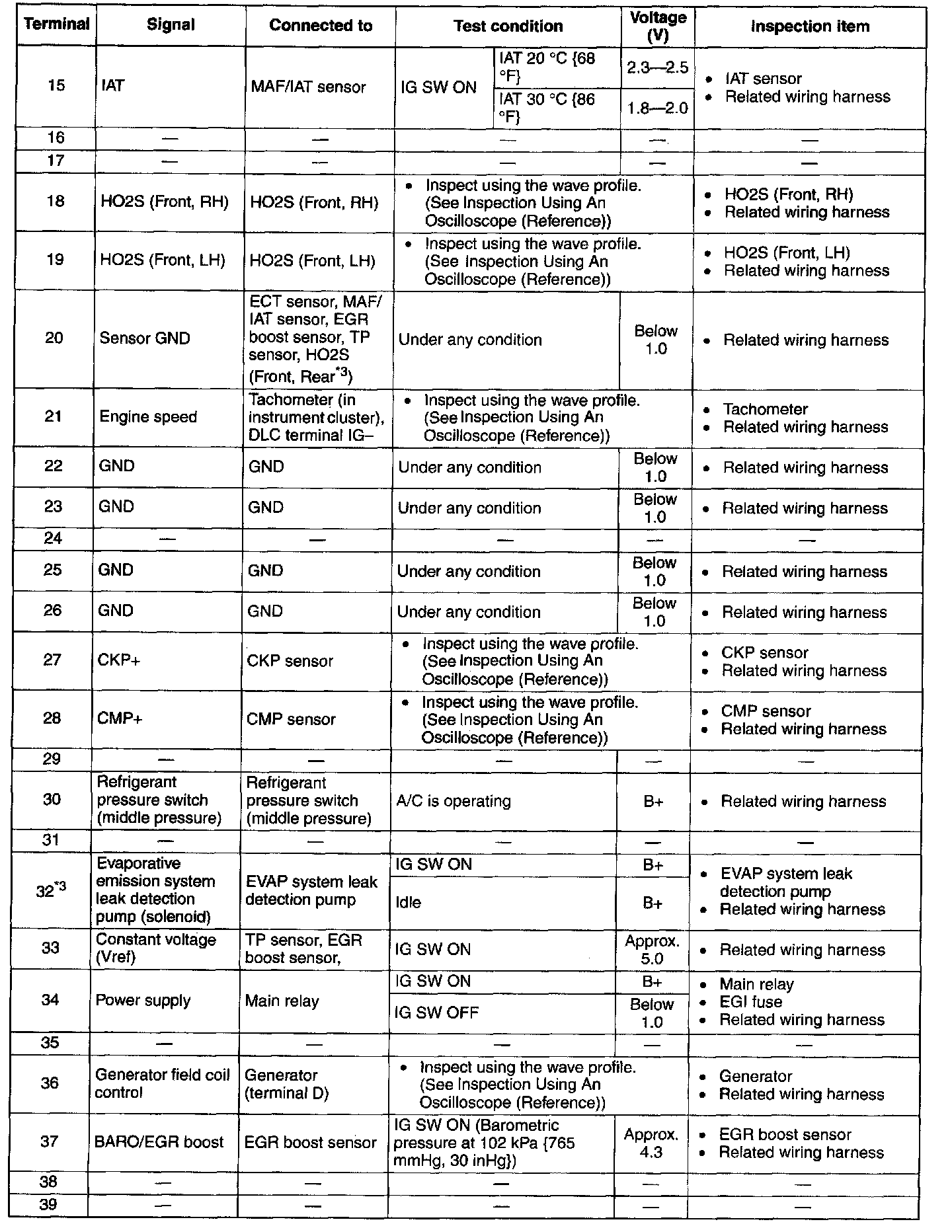

Terminal Voltage Table(Reference) - Terminals (15 - 39):

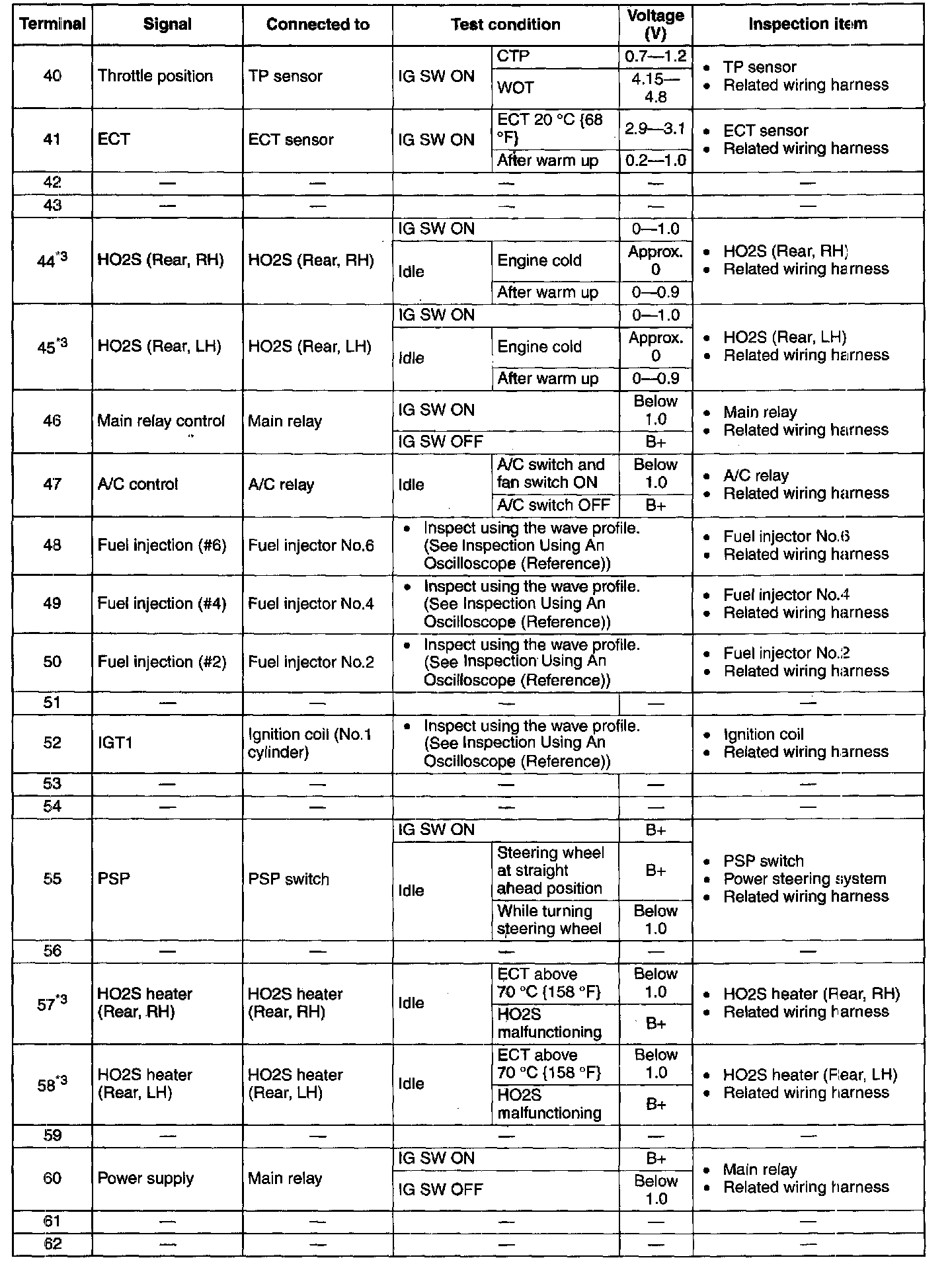

Terminal Voltage Table(Reference) - Terminals (40 - 62):

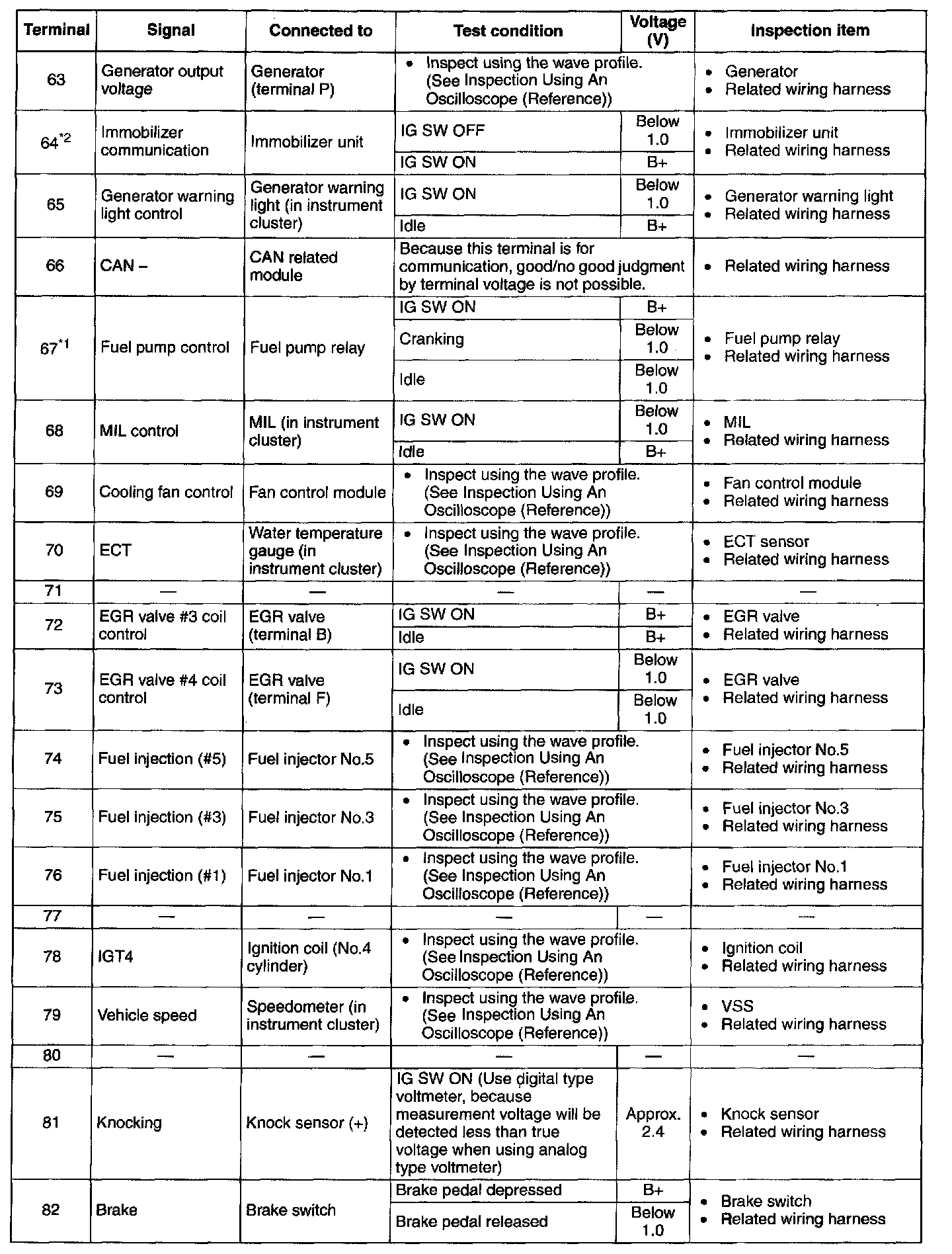

Terminal Voltage Table(Reference) - Terminals (62 - 82):

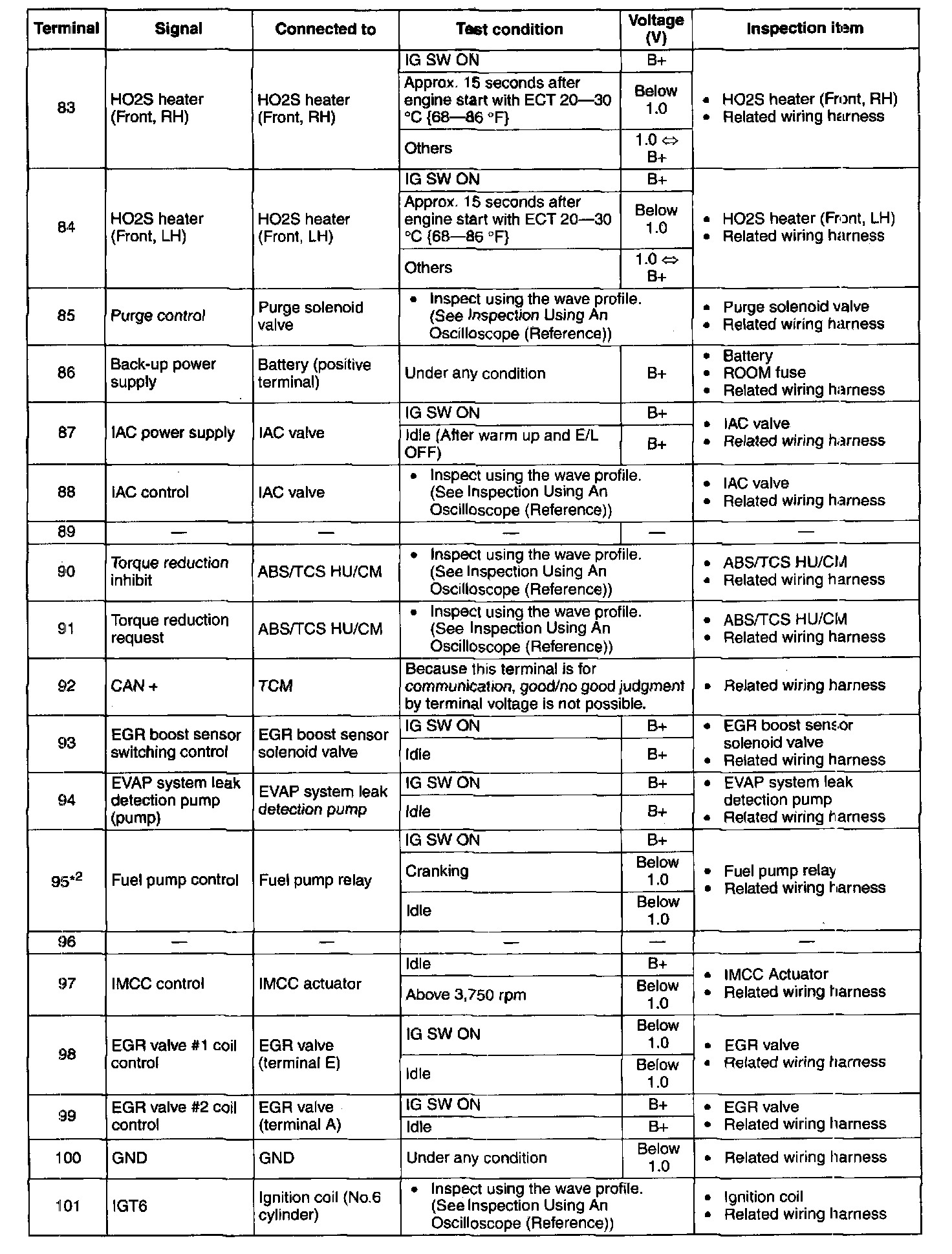

Terminal Voltage Table(Reference) - Terminals (83 - 101):

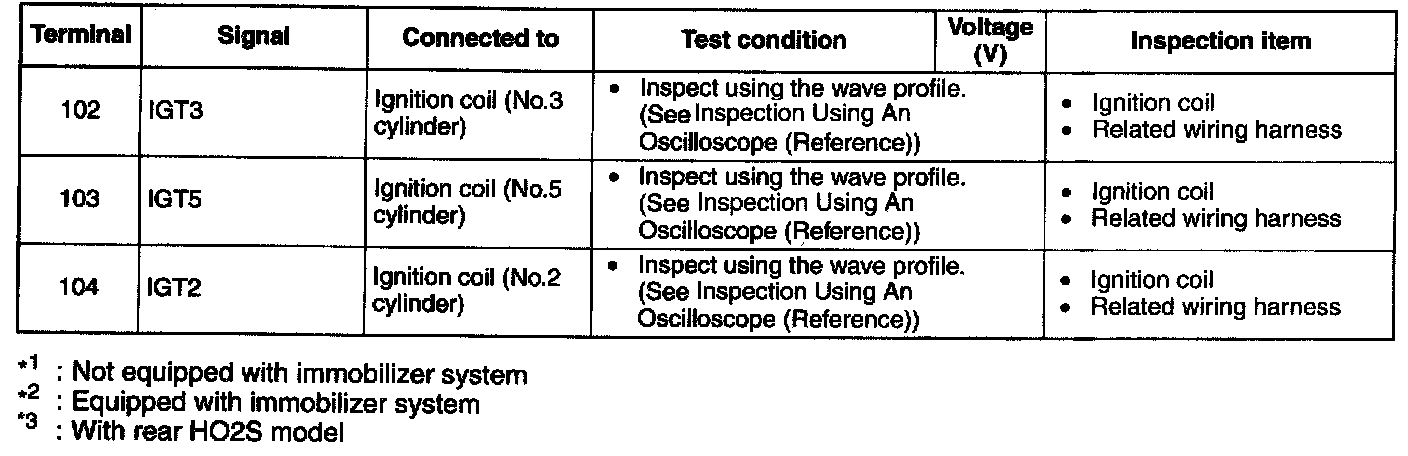

Terminal Voltage Table(Reference) - Terminals (102 - 104):
