Cruise Control

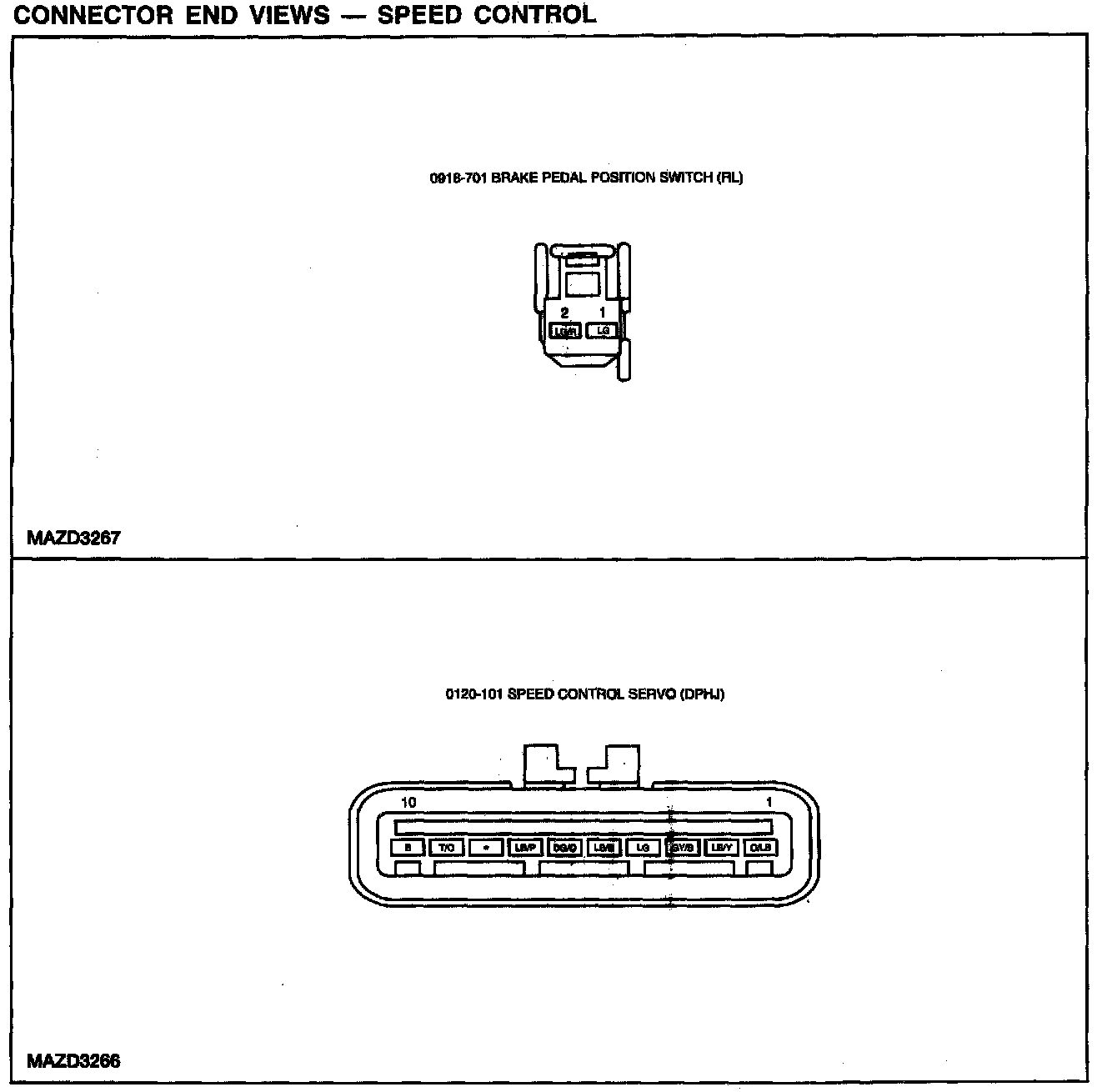

Connector End Views - Speed Control Part 1:

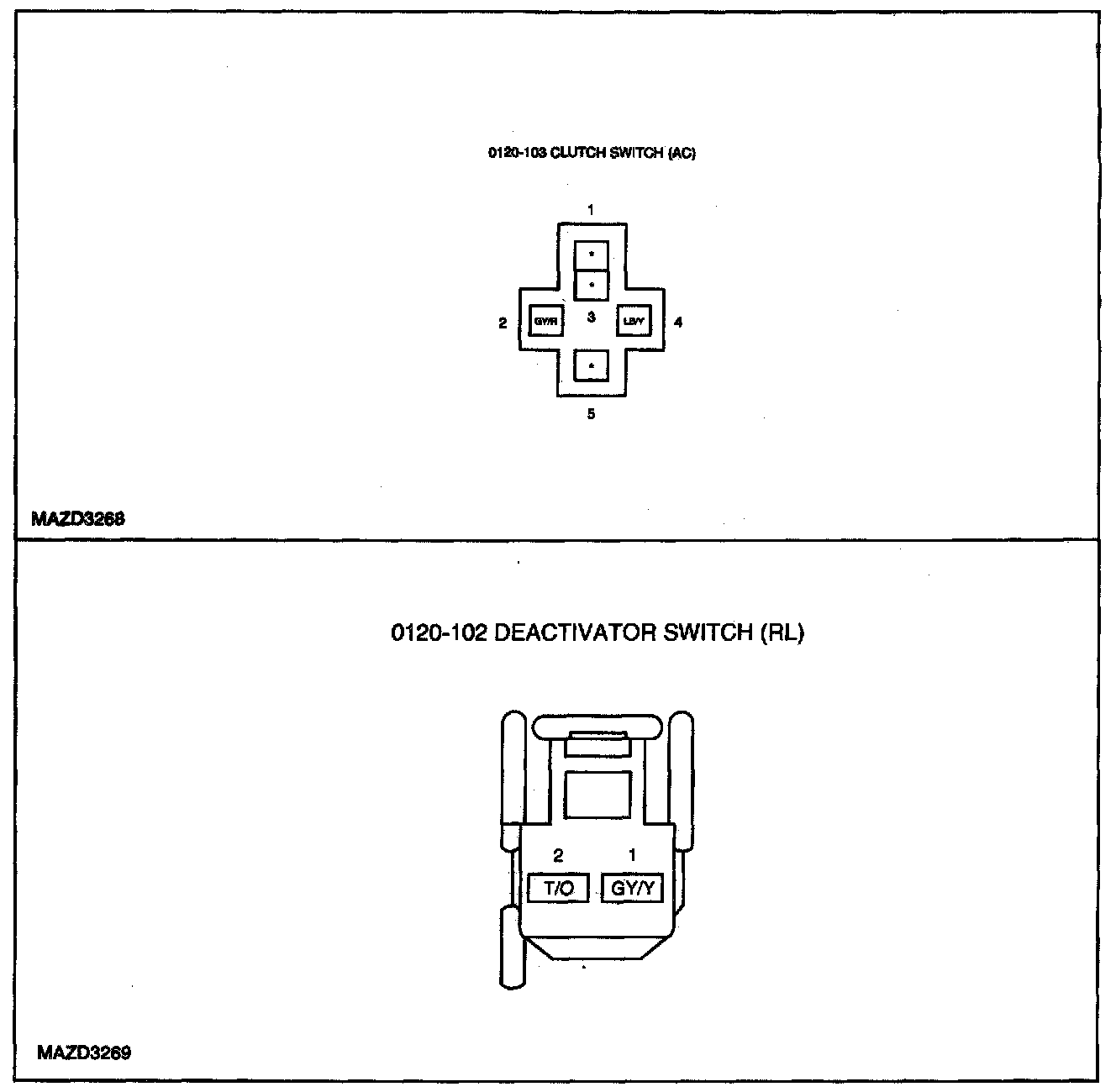

Connector End Views - Speed Control Part 2:
