Front Door Latch: Notes

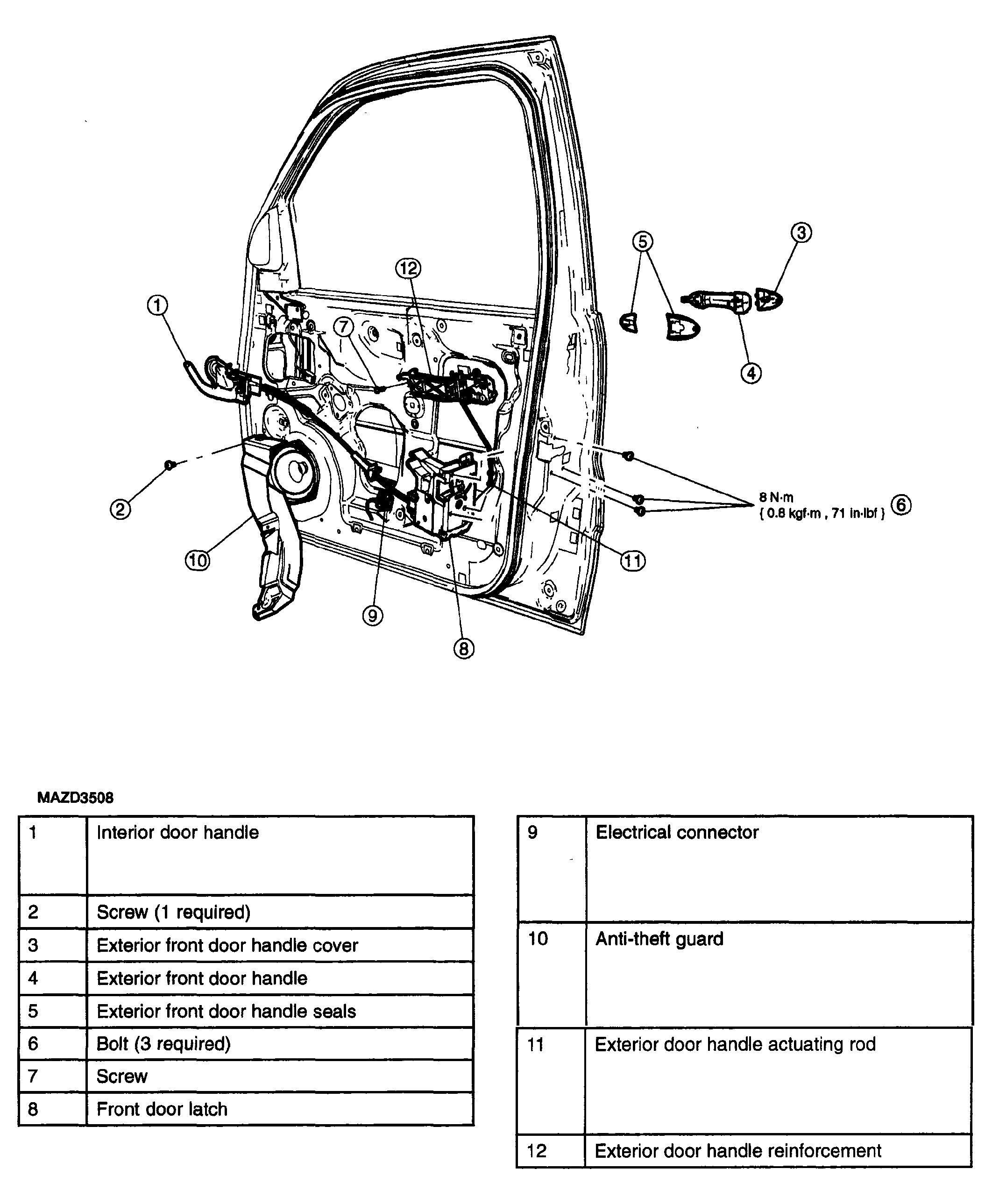

Fig 1: Front Door Latch With Torque Specifications

G04322752

Courtesy of MAZDA MOTORS CORP.
