Hood Latch: Notes

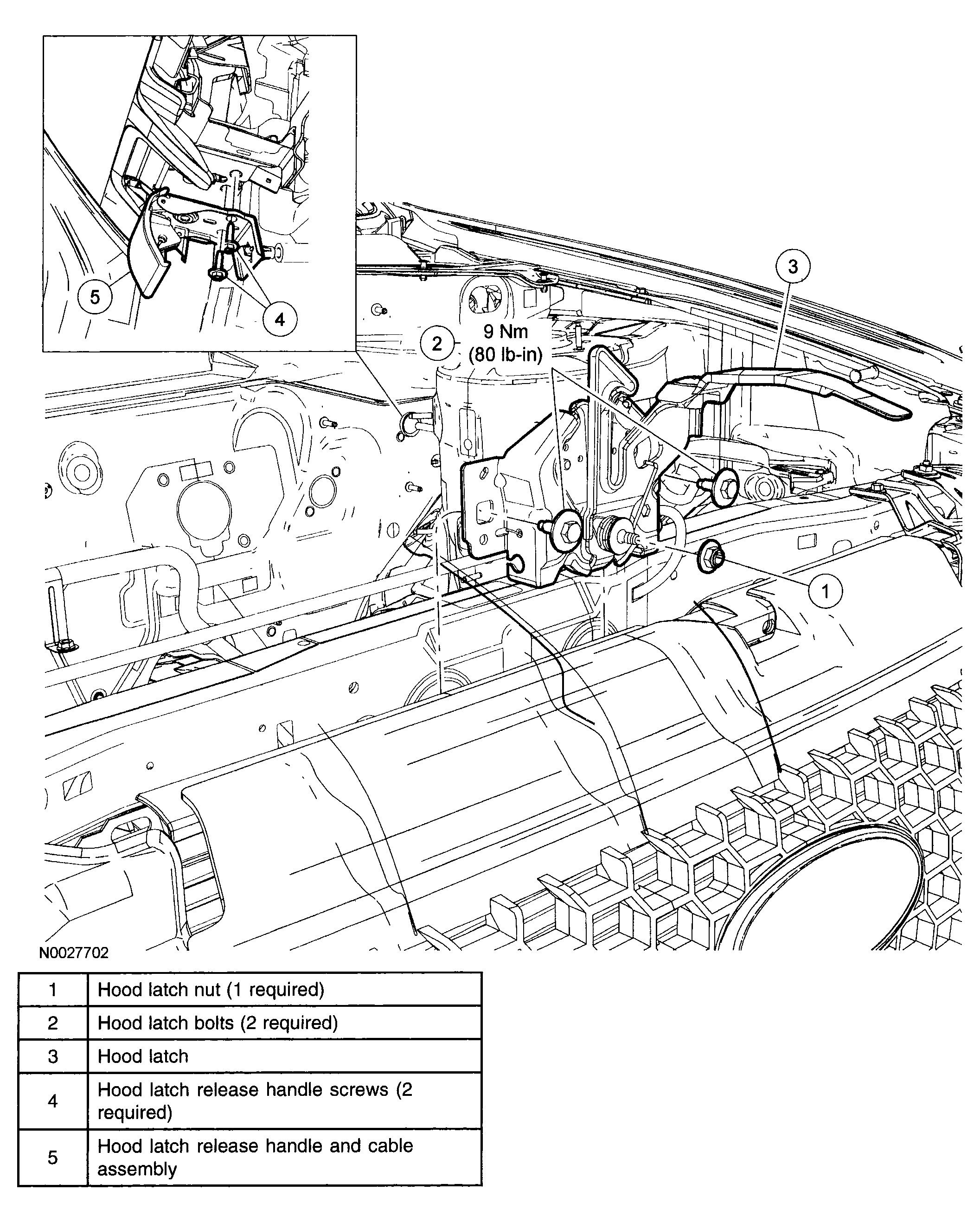

Fig 1: Hood Latch With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
