Liftgate Latch: Notes

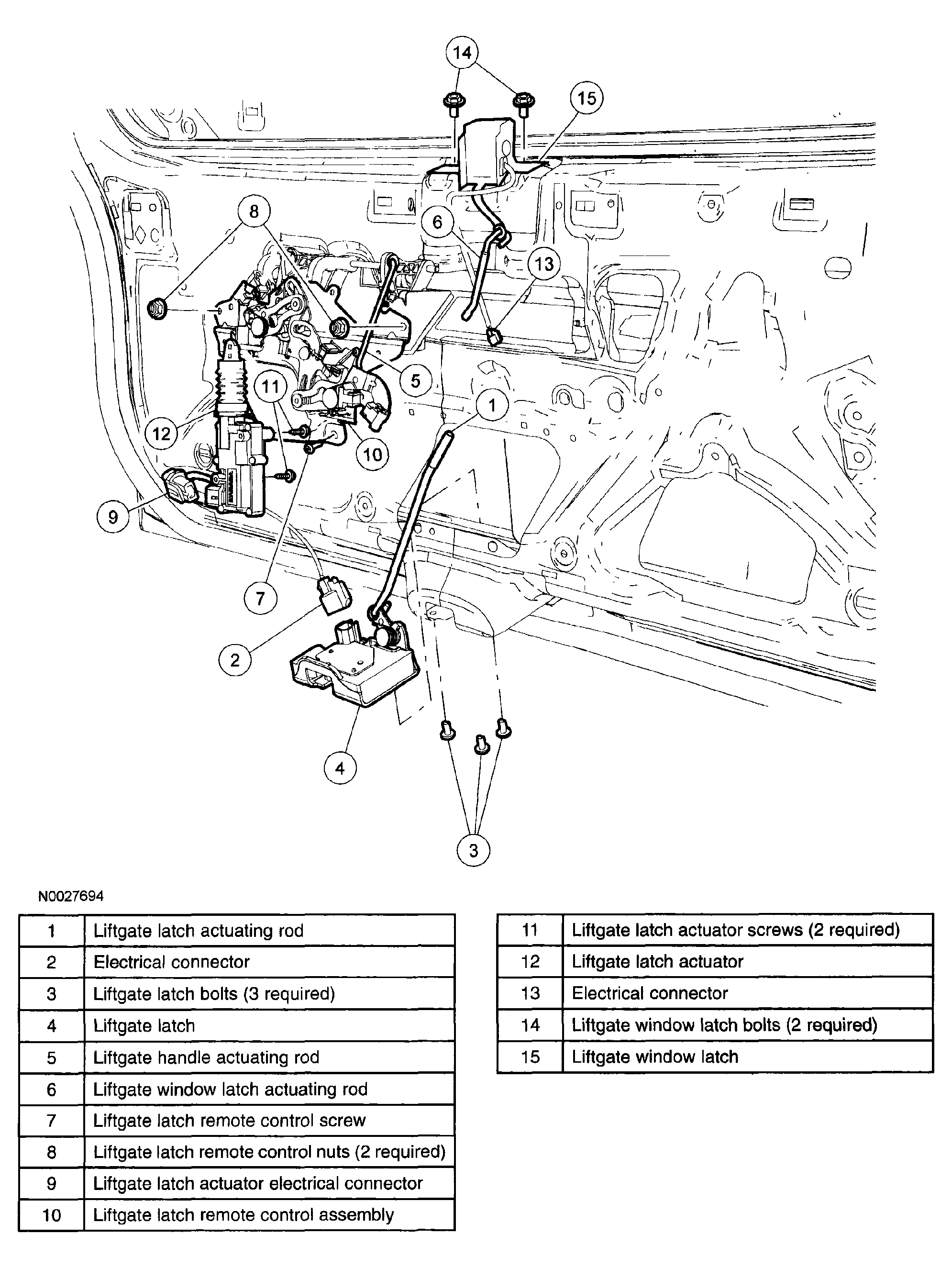

Fig 1: Identifying Liftgate Latch
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
