Connector End Views - Transaxle Shift Control

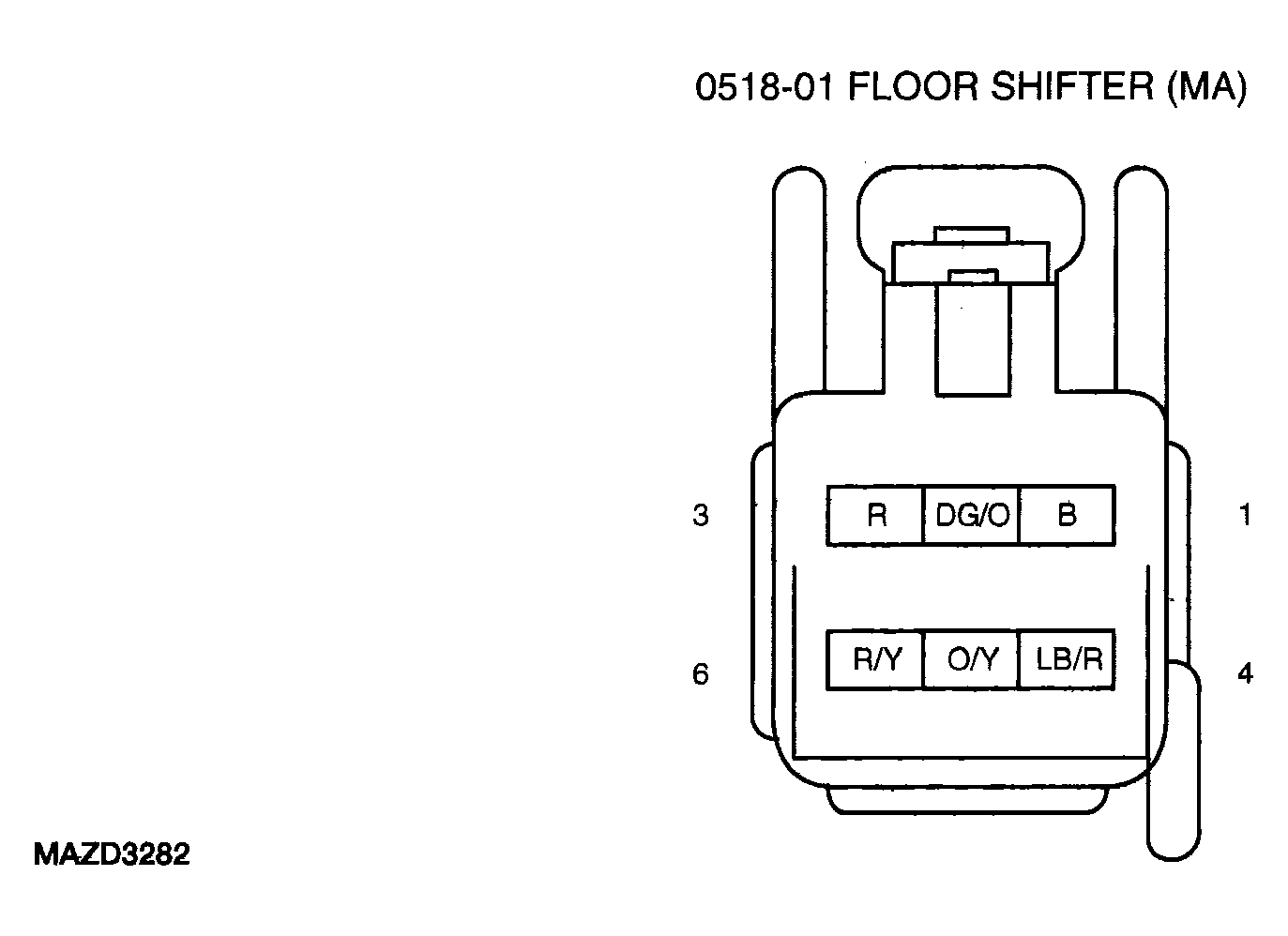

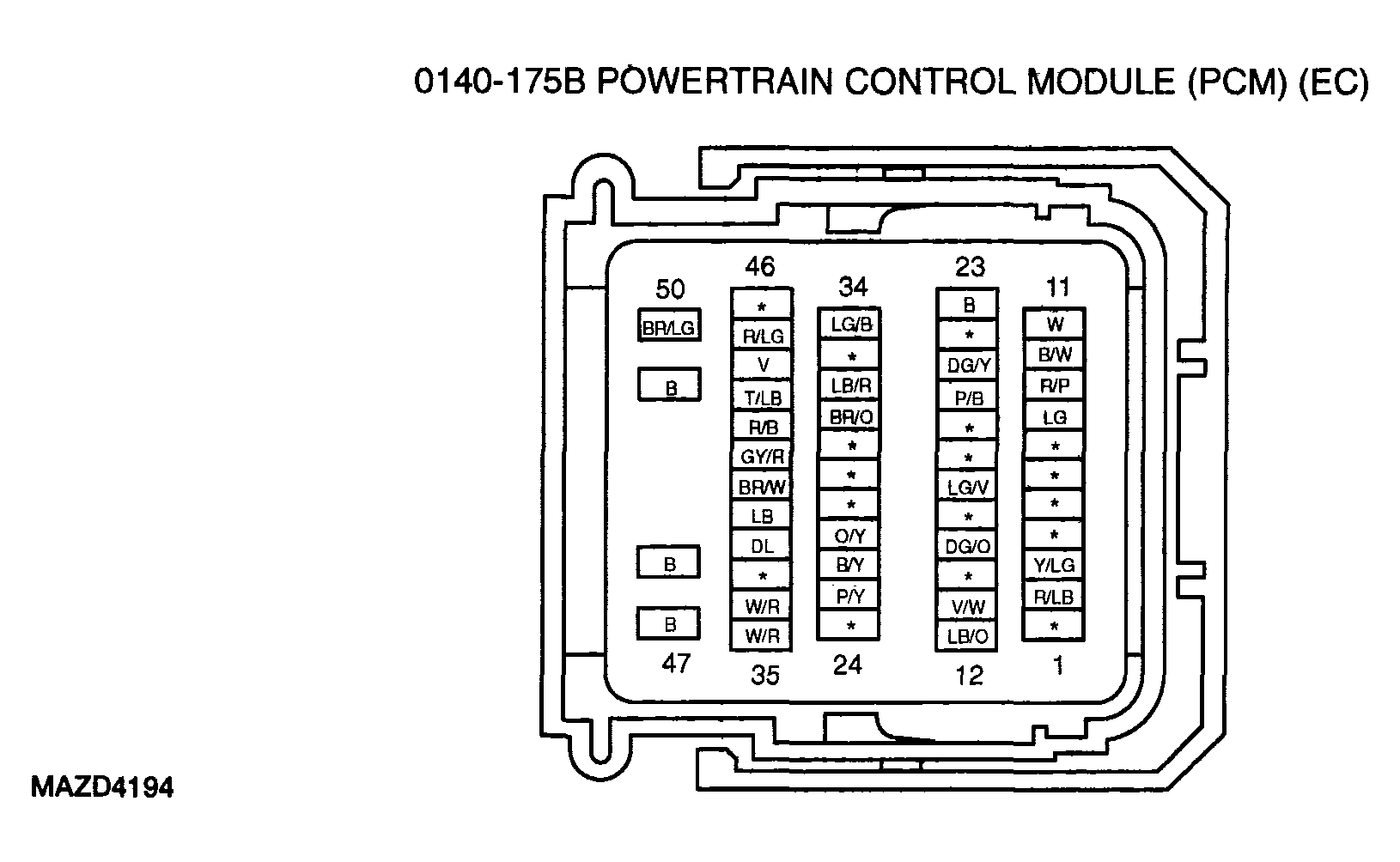

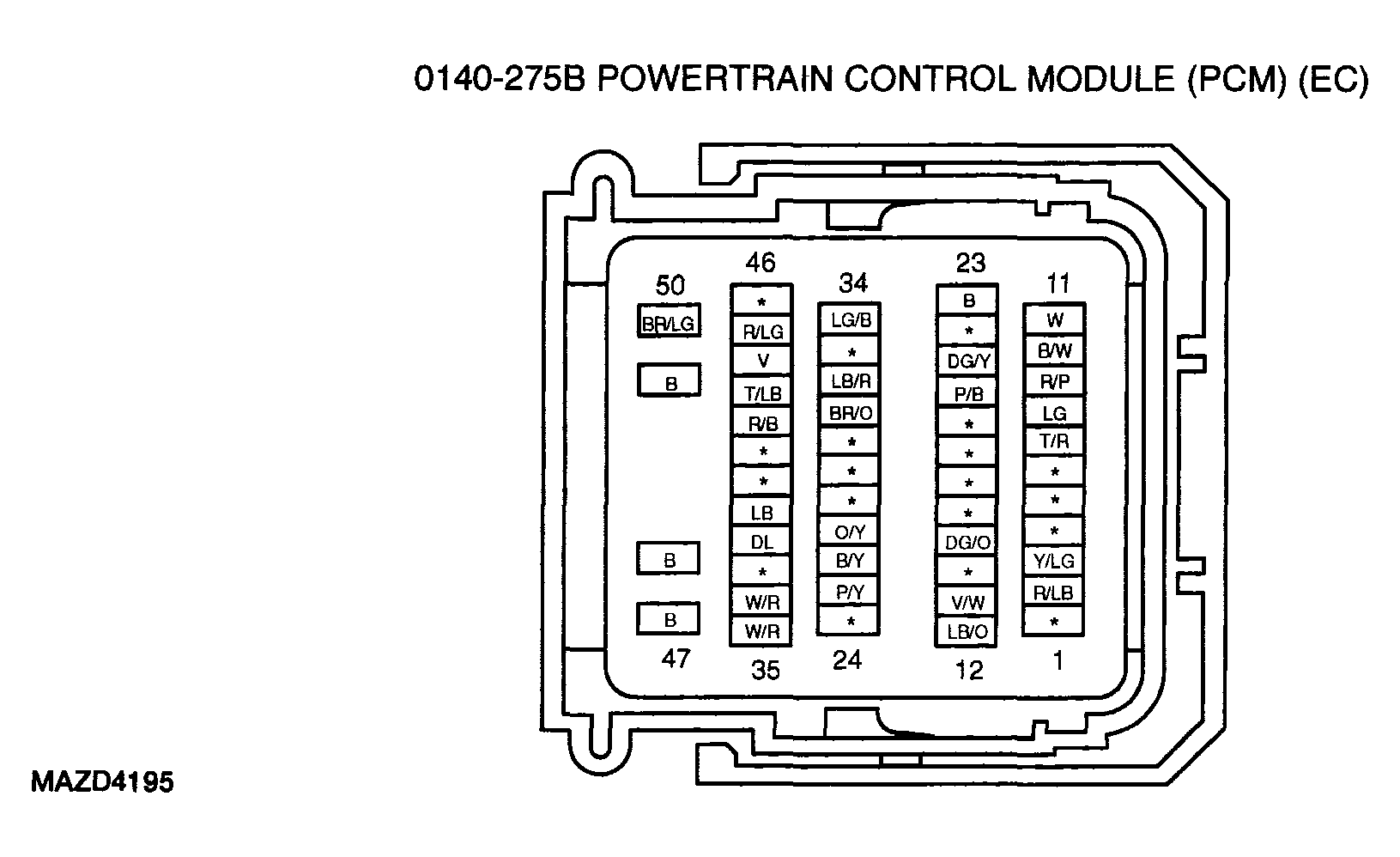

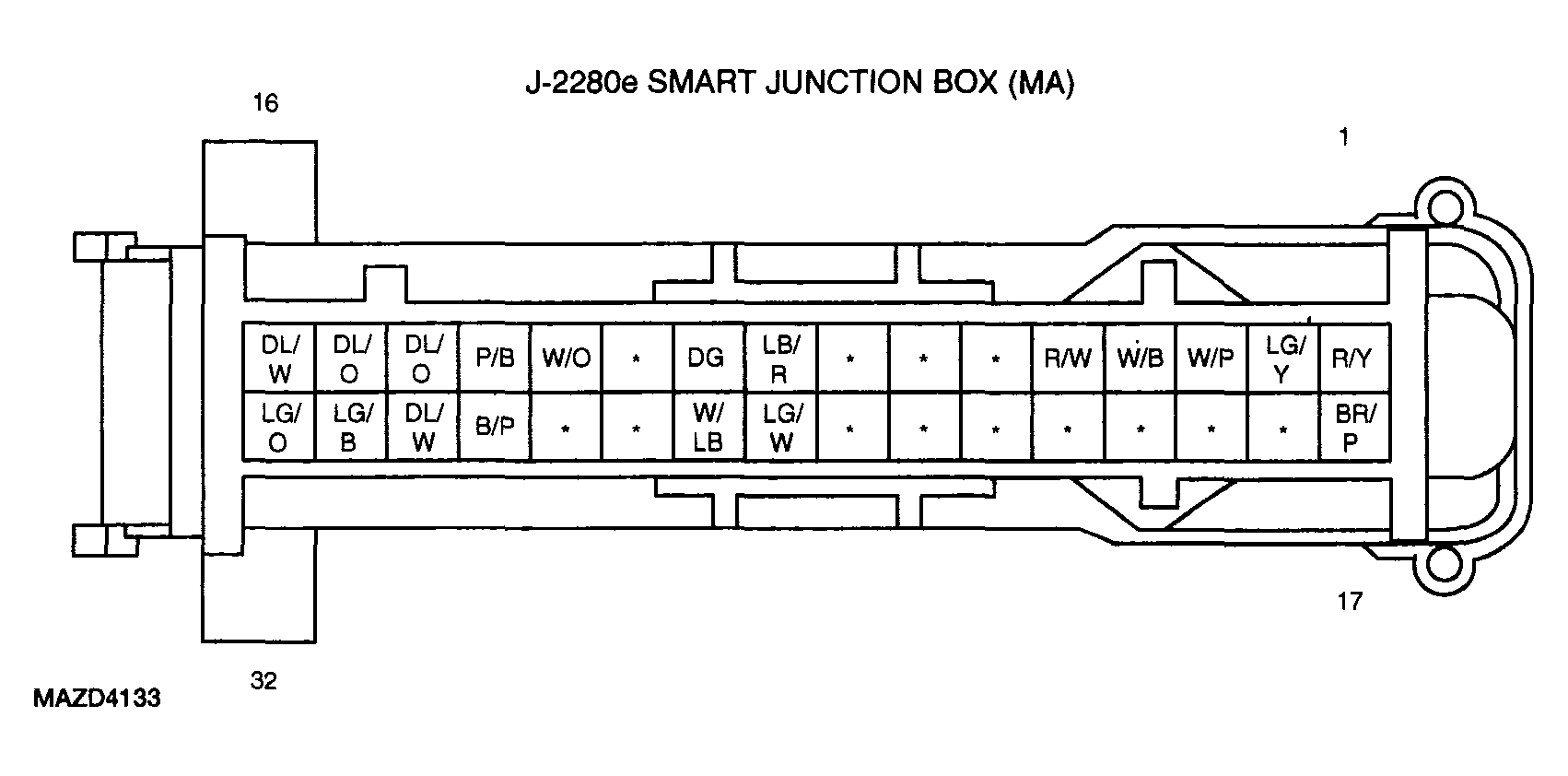

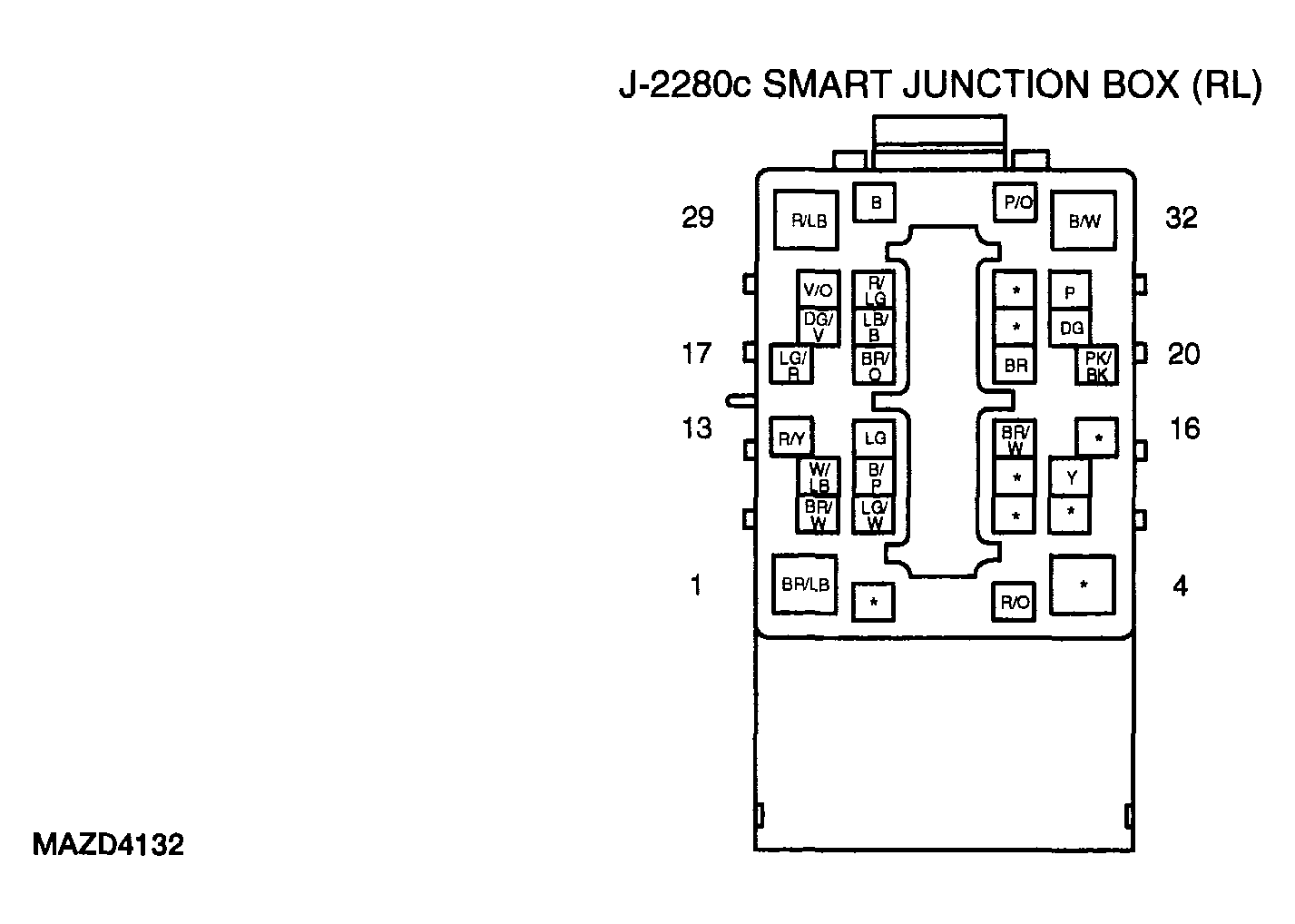

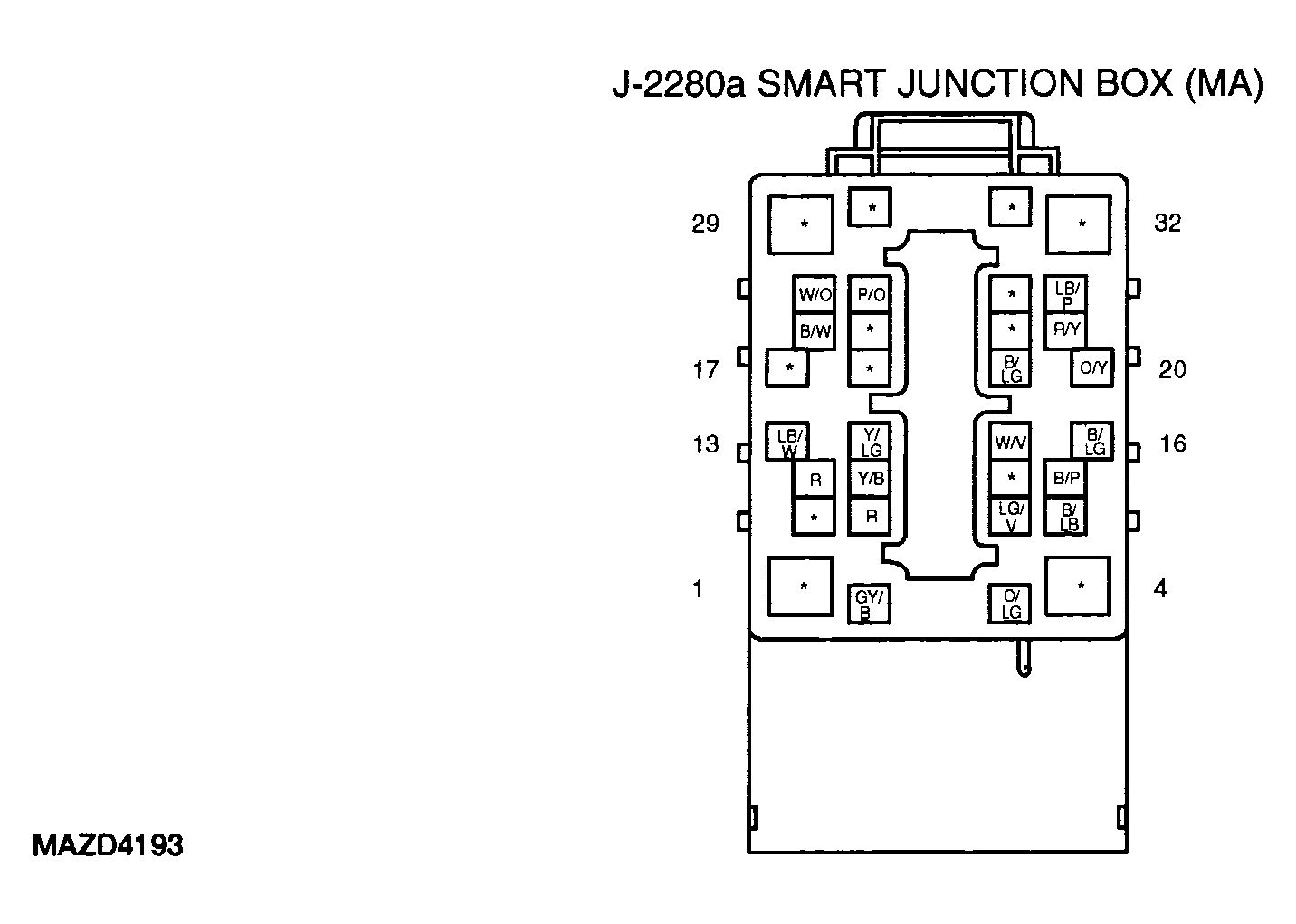

CONNECTOR END VIEWS - TRANSAXLE SHIFT CONTROL
CONNECTOR END VIEWS - TRANSAXLE SHIFT CONTROL
CONNECTOR END VIEWS - TRANSAXLE SHIFT CONTROL
