Power Take Off Unit - Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

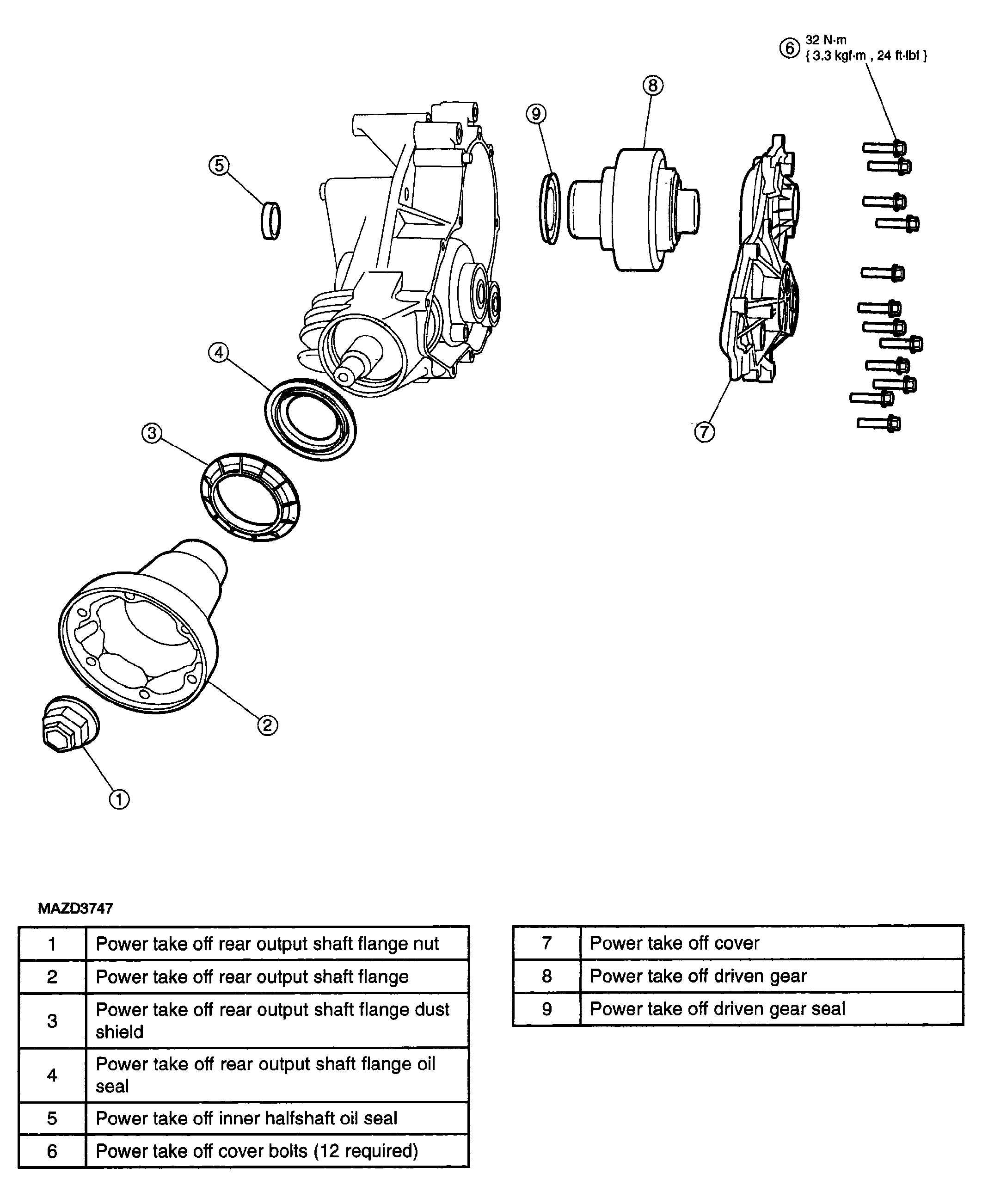

Fig 1: Exploded View Of Power Take Off Unit Components With Torque Specifications
G04320647Courtesy of MAZDA MOTORS CORP.
