Rear Safety Belt Retractor: Notes

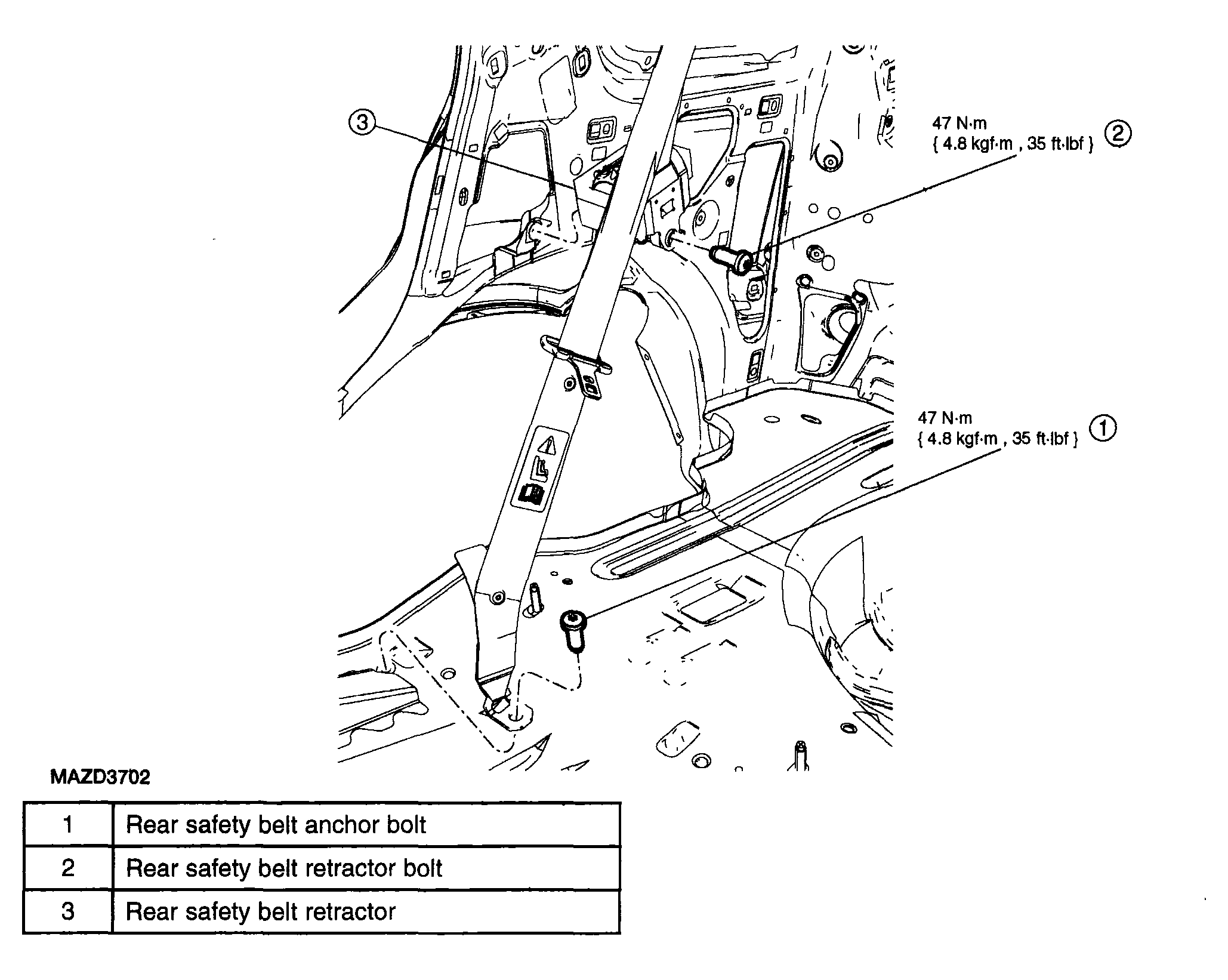

Fig 1: Rear Safety Belt Retractor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
