Selector Lever: Notes

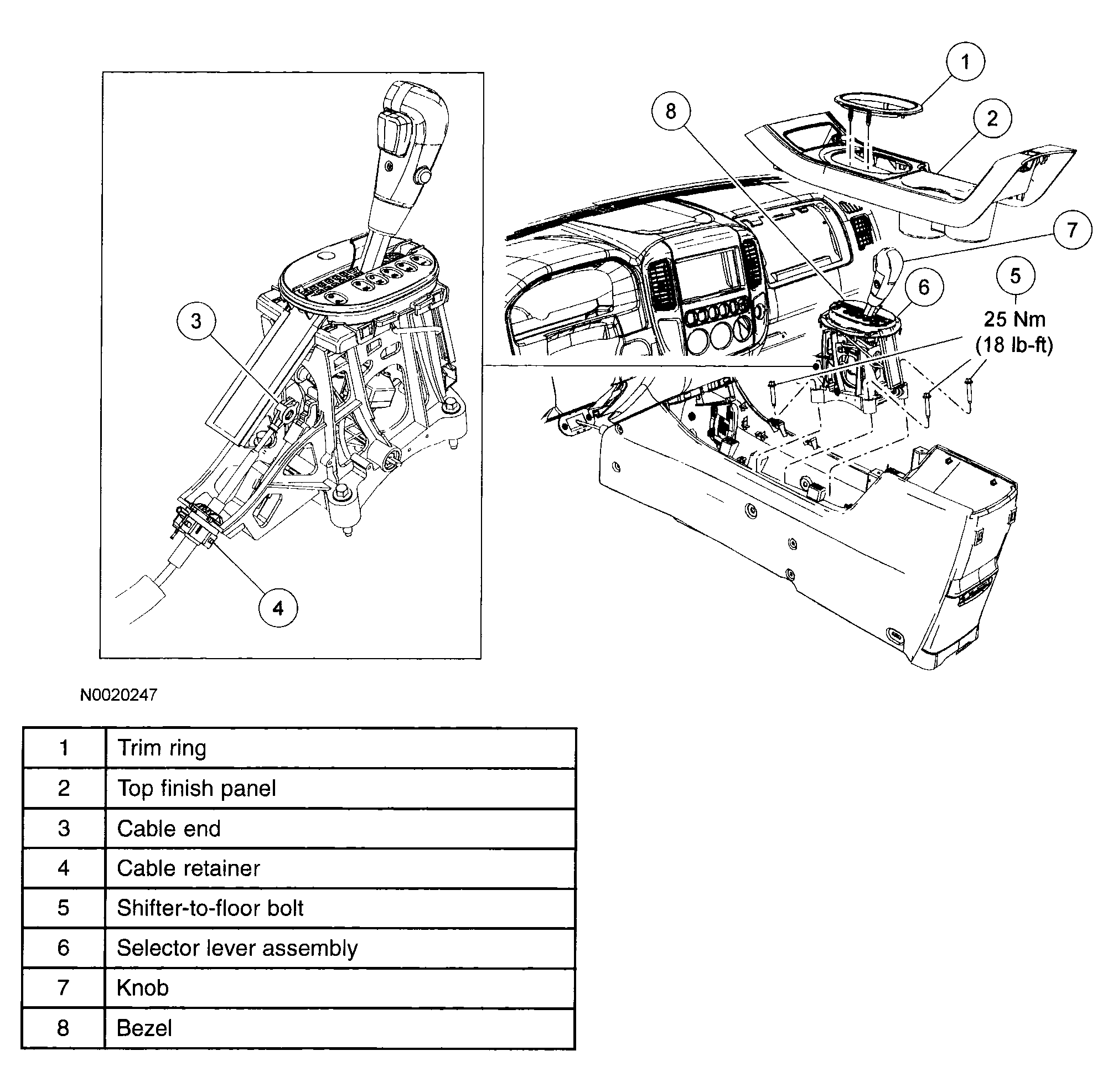

Fig 1: Selector Lever Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
