Main Control Cover And Gasket: Notes

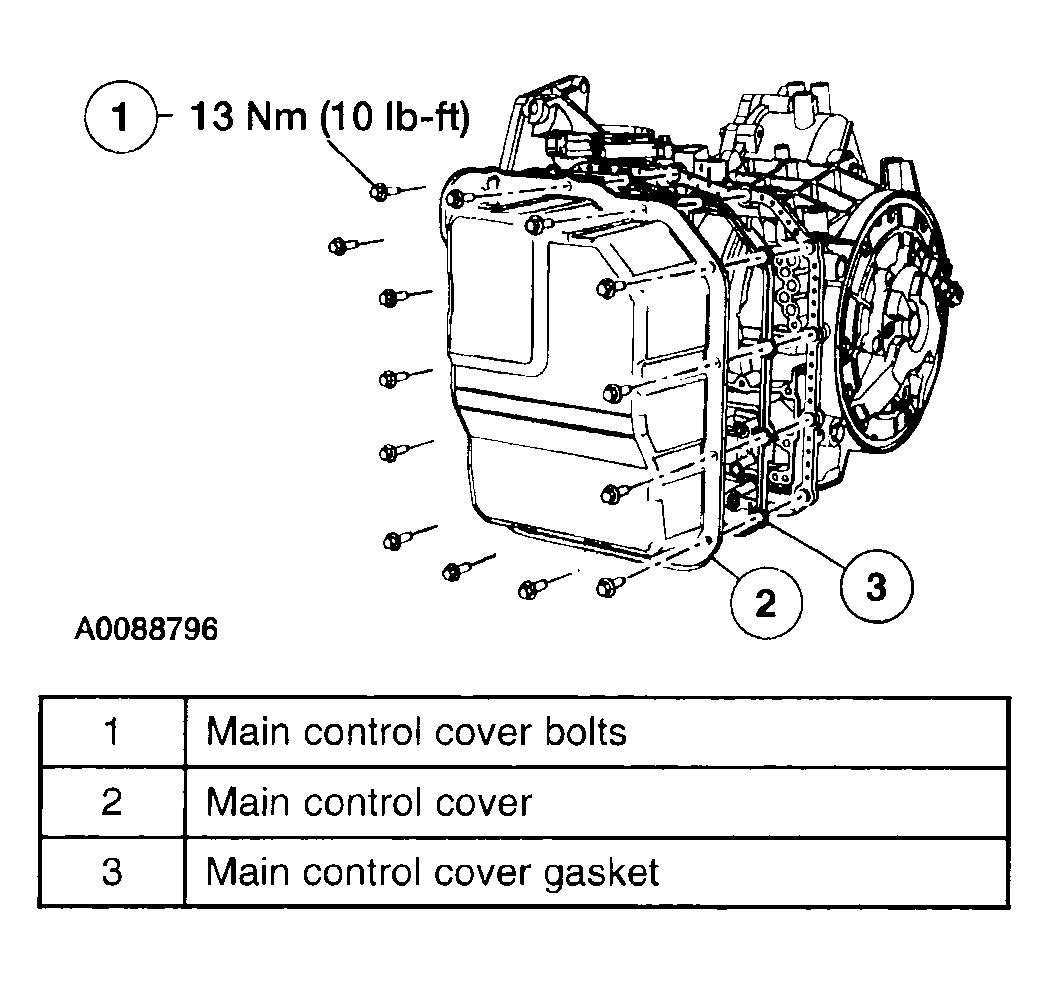

Fig 1: Removing Main Control Cover And Gasket
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
