Main Control Valve Body: Assembly

Fig 1: Installing Intermediate And Overdrive Accumulator Plug Seal

Courtesy of MAZDA MOTORS CORP.

WARNING:

Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.

CAUTION:

If the valve sticks in its bore and cannot be freed, install a new main control valve body.

NOTE:

Clean the main control valve body and accumulator body assembly of the main control in cleaning solvent. Blow dry with moisture-free regulated compressed air. The solenoid valve body should not be cleaned in cleaning solvent. It may be blown clean with compressed air or wiped clean with a lint-free cloth.

Install a new intermediate and overdrive accumulator plug seal and coat with petroleum jelly.

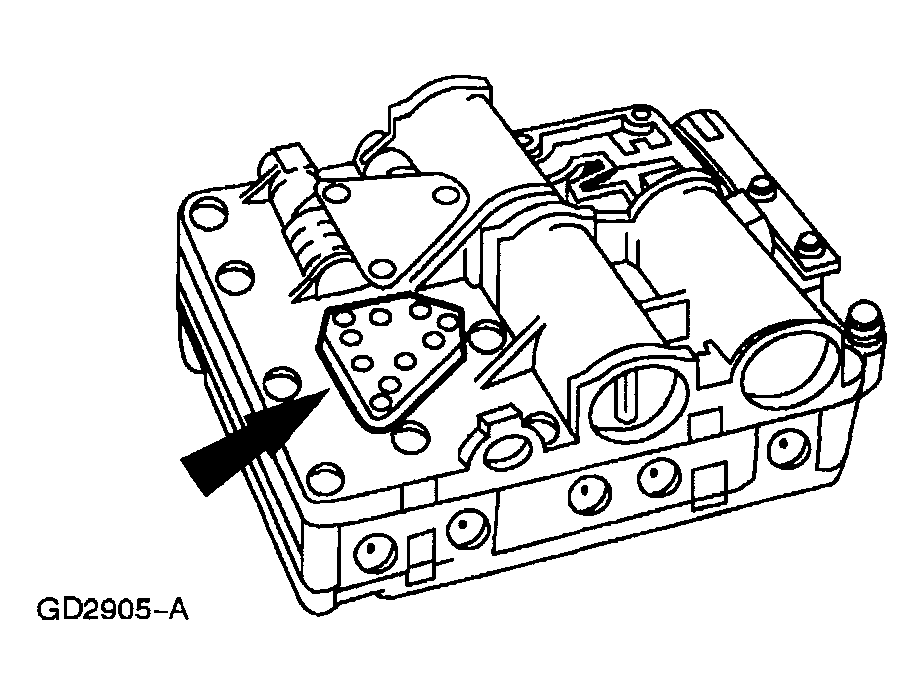

Fig 2: Installing Intermediate And Overdrive Accumulator Valve Plug
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not install the intermediate and overdrive accumulator valve plug and seal too far into the bore and damage the seal. Only push the intermediate and overdrive accumulator valve plug until it is flush with the accumulator body assembly.
Install the intermediate and overdrive accumulator valve plug.

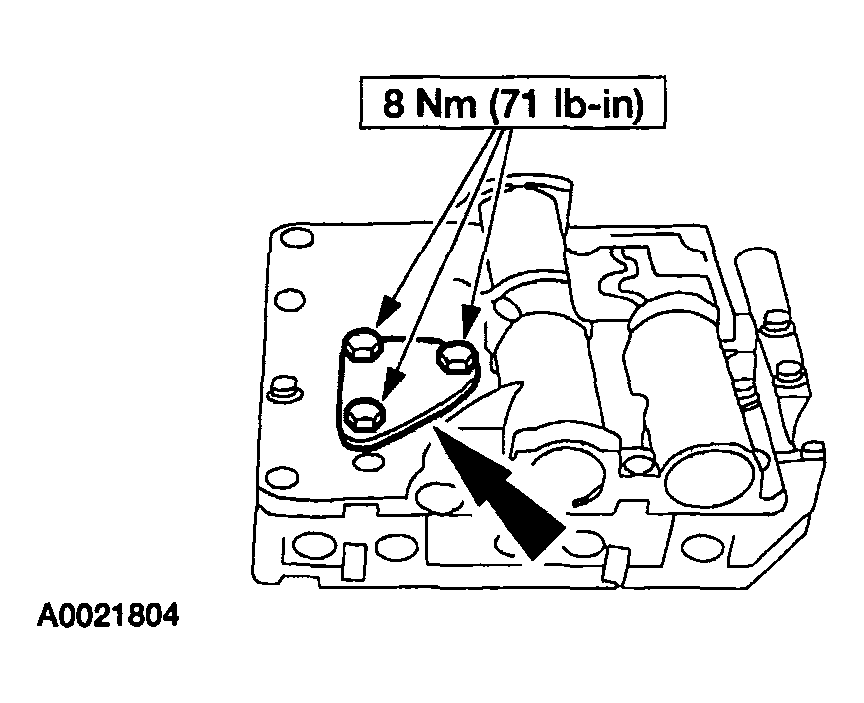

Fig 3: Installing Intermediate And Overdrive Accumulator Valve Plug Retaining Plate
Courtesy of MAZDA MOTORS CORP.
Install the intermediate and overdrive accumulator valve plug retaining plate.

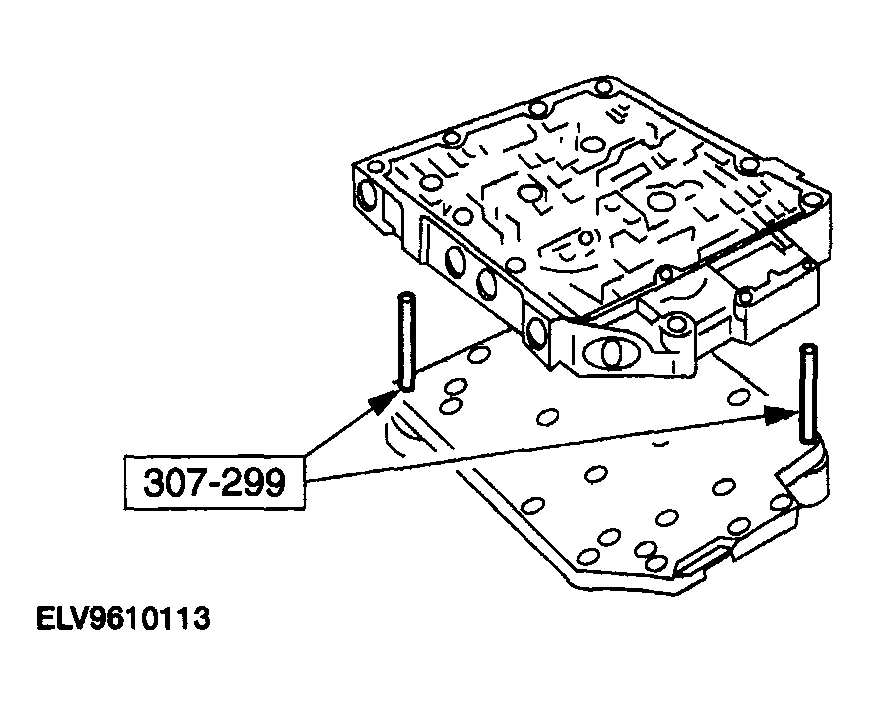

Fig 4: Installing Special Tool
Courtesy of MAZDA MOTORS CORP.
Install the special tool.

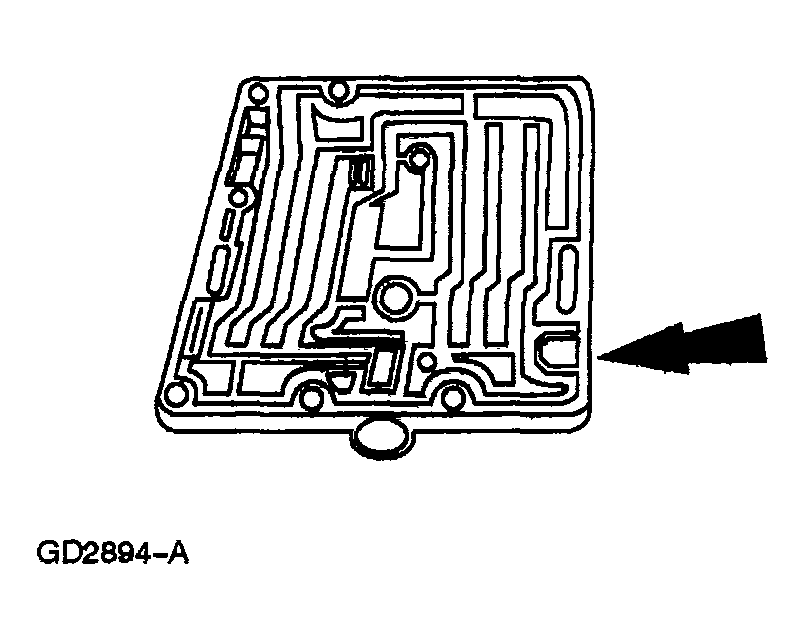

Fig 5: Installing Valve Body Separator Plate Gasket
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the valve body separator plate gaskets and valve body separator plate.
1. Install a new valve body separator plate gasket.
2. Install the valve body separator plate.
3. Install a new valve body separator plate gasket.

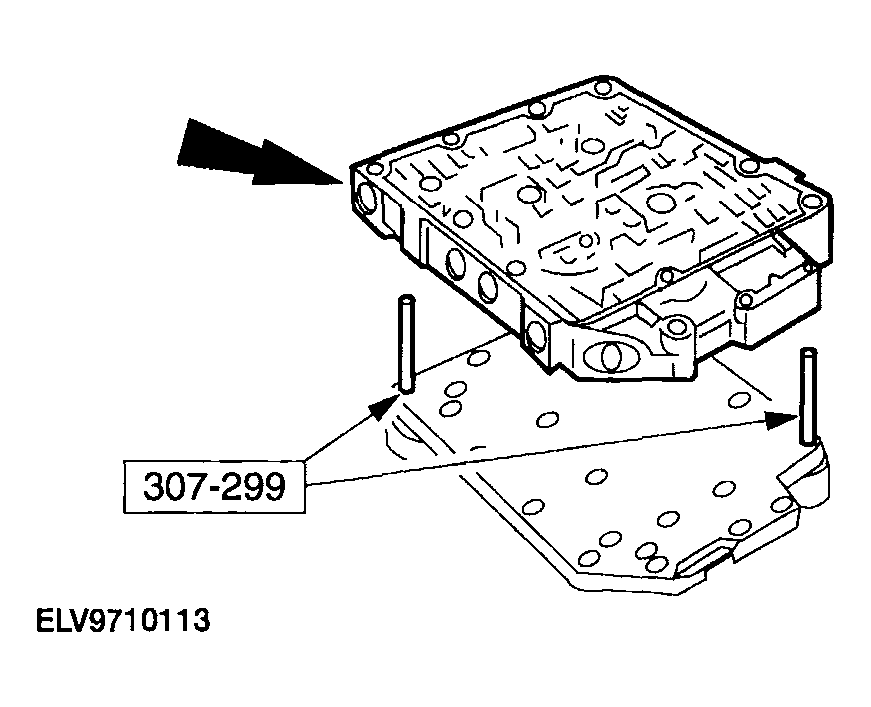

  Fig 6: Installing Main Control Valve Body Using Special Tool
  Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the main control valve body.

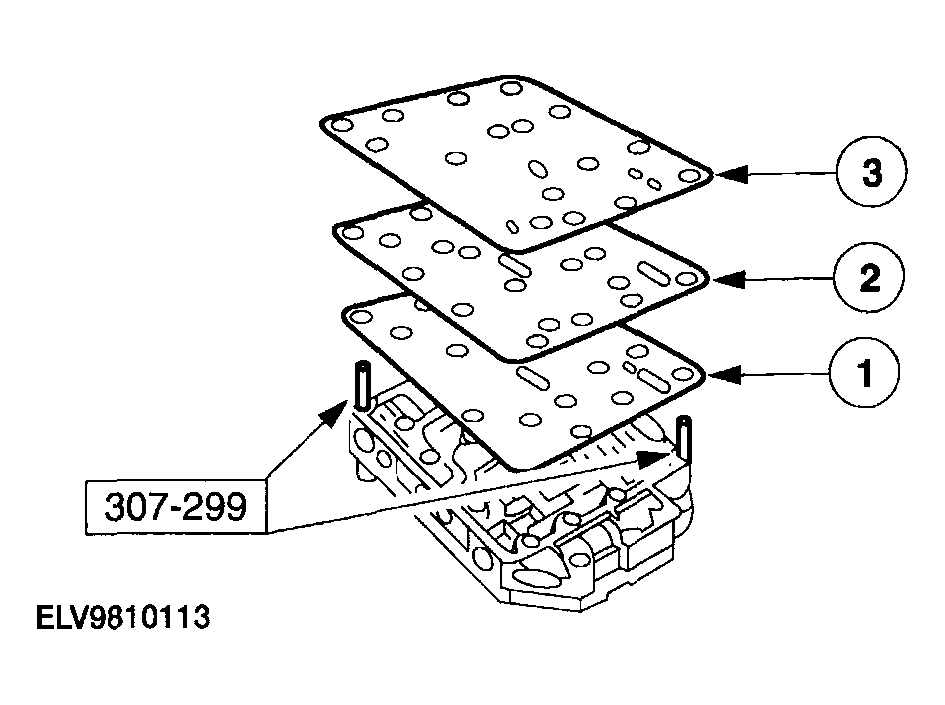

Fig 7: Installing Accumulator Body Separator Plate And Gaskets Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the accumulator body separator plate and gaskets.
1. Install a new accumulator body separator plate gasket.
2. Install the accumulator body separator plate.
3. Install a new accumulator body separator plate gasket.

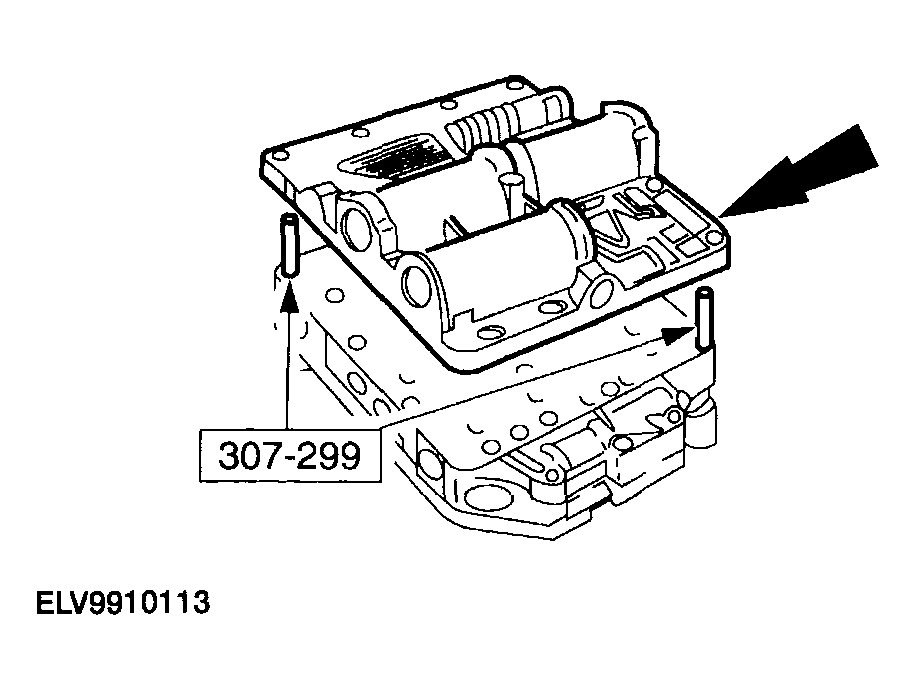

  Fig 8: Installing Accumulator Body Assembly Using Special Tool
  Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the accumulator body assembly.

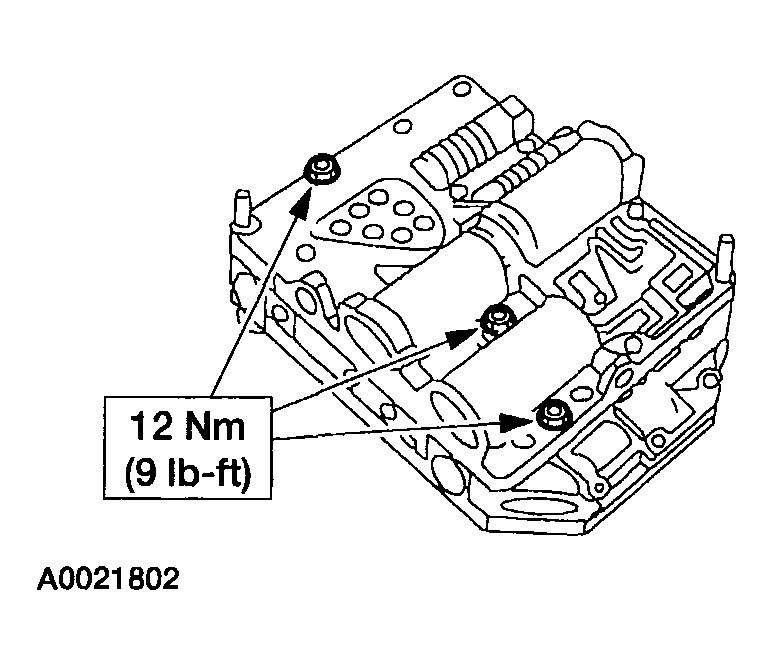

Fig 9: Installing Accumulator Body Transfer Plate With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Starting with the bolts in the middle and working outward, install the accumulator body transfer plate.

Fig 10: Installing Main Control Valve Body To Transfer Plate With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Starting with the bolts in the middle and working outward, install the main control valve body to transfer plate.
1. Install the manual valve detent spring.
2. Install the control valve body to transfer plate bolts.

  Fig 11: Installing Pressure Tap Plate Gasket
  Courtesy of MAZDA MOTORS CORP.
Install a new pressure tap plate gasket.

Fig 12: Installing Pressure Tap Plate And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the pressure tap plate and bolts.
NOTE:
- Match the solenoid valve body gasket to passages.

Fig 13: Installing Solenoid Valve Body With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Install the solenoid valve body.
1. Install the solenoid valve body gasket.
2. Install the solenoid valve body.
3. Install the two solenoid valve body bolts.
4. Remove the special tool.

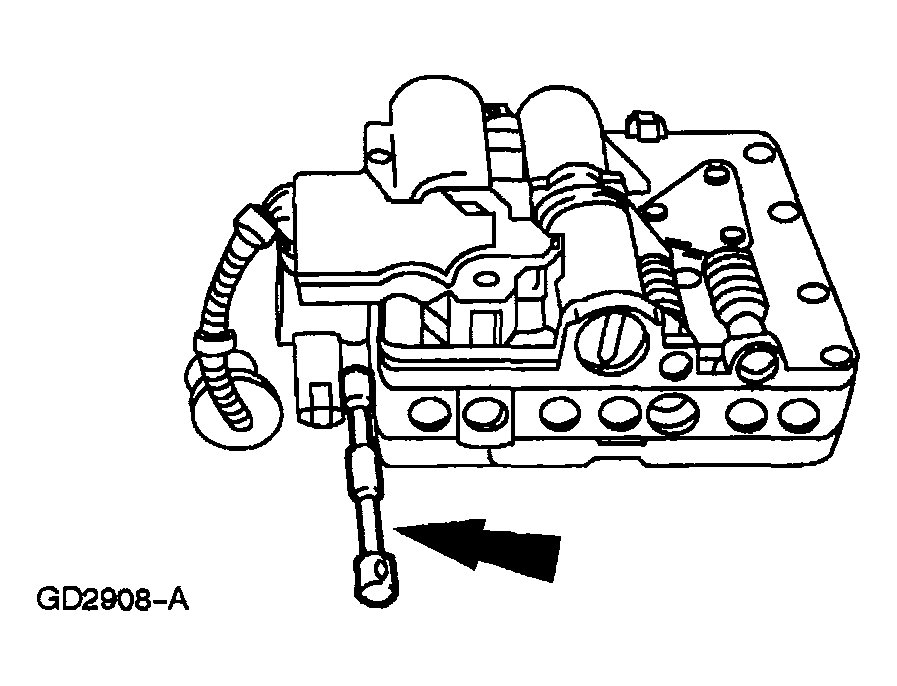

  Fig 14: Installing Manual Valve
  Courtesy of MAZDA MOTORS CORP.
Install the manual valve.
