Main Control Valve Body: Disassembly

Fig 1: Removing Manual Valve
G04321365Courtesy of MAZDA MOTORS CORP.
  1. Remove the manual valve.
    CAUTION:
    • Do not attempt to remove the solenoid valve body wiring cover.
    Fig 2: Removing Solenoid Valve Body Bolts
    G04321366Courtesy of MAZDA MOTORS CORP.
  2. Remove the two solenoid valve body bolts and the solenoid valve body.

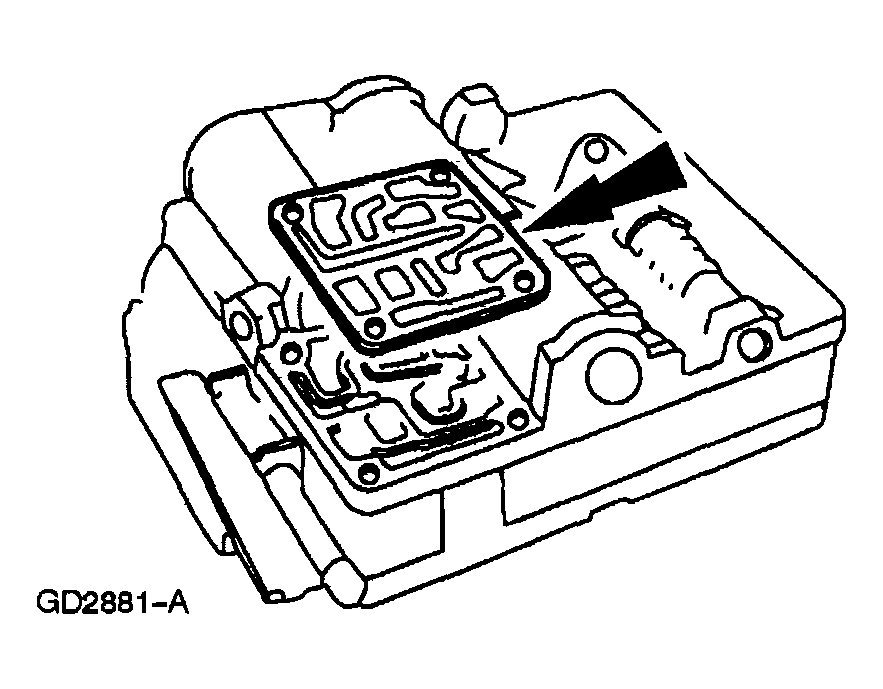

    Fig 3: Removing Solenoid Valve Body Gasket
    G04321367Courtesy of MAZDA MOTORS CORP.
  3. Remove and discard the solenoid valve body gasket.
    Fig 4: Removing Pressure Tap Plate Bolts And Pressure Tap Plate
    G04321368Courtesy of MAZDA MOTORS CORP.
  4. Remove the three pressure tap plate bolts and the pressure tap plate.

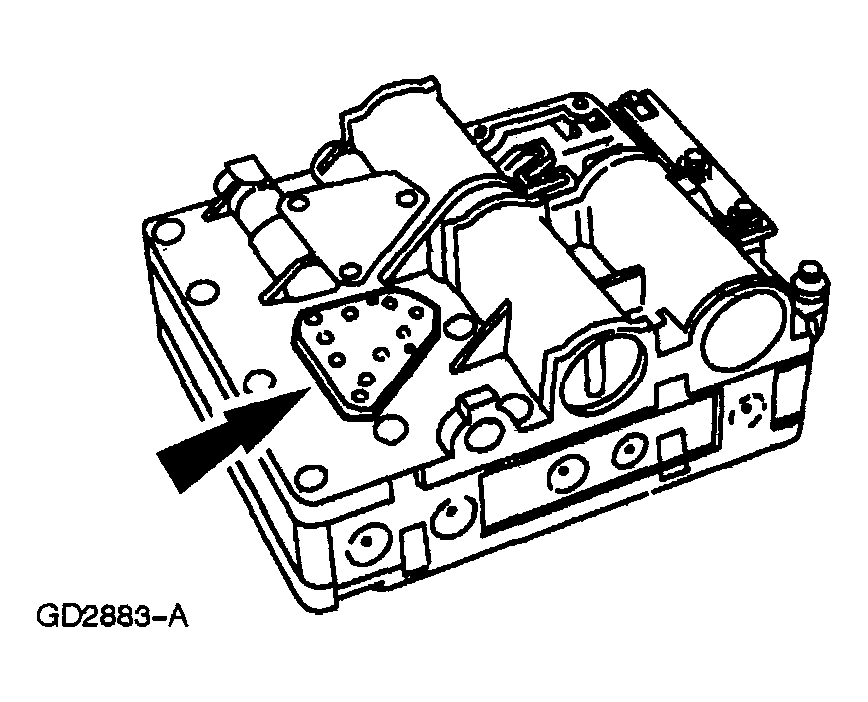

    Fig 5: Removing Pressure Plate Tap Gasket
    G04321369Courtesy of MAZDA MOTORS CORP.
  5. Remove and discard the pressure plate tap gasket.
    Fig 6: Removing Control Valve Body To Transfer Plate Bolts
    G04321370Courtesy of MAZDA MOTORS CORP.
  6. Remove the control valve body to transfer plate bolts, and remove the manual valve detent spring assembly.

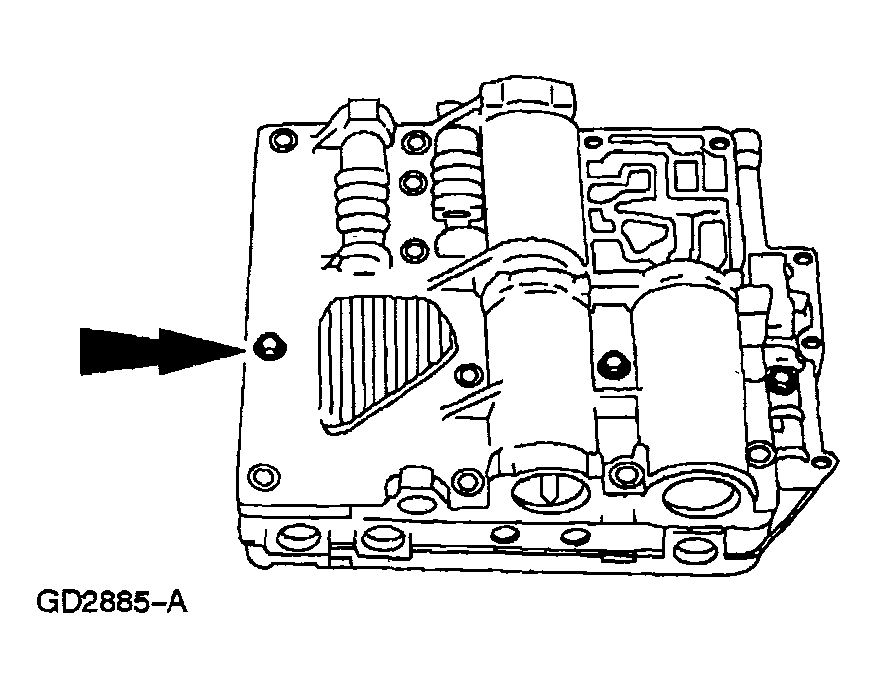

    Fig 7: Removing Accumulator Body-To-Transfer Plate Bolts
    G04321371Courtesy of MAZDA MOTORS CORP.
  7. Remove the accumulator body-to-transfer plate bolts.
    Fig 8: Removing Accumulator Body Assembly
    G04321372Courtesy of MAZDA MOTORS CORP.
  8. Separate the accumulator body from the main control valve body.
    1. Remove the accumulator body assembly.
    2. Remove and discard the accumulator body separator gasket.
    3. Remove the accumulator body separator plate.
    4. Remove and discard the accumulator body separator gasket.
    5. Remove the main control valve body.

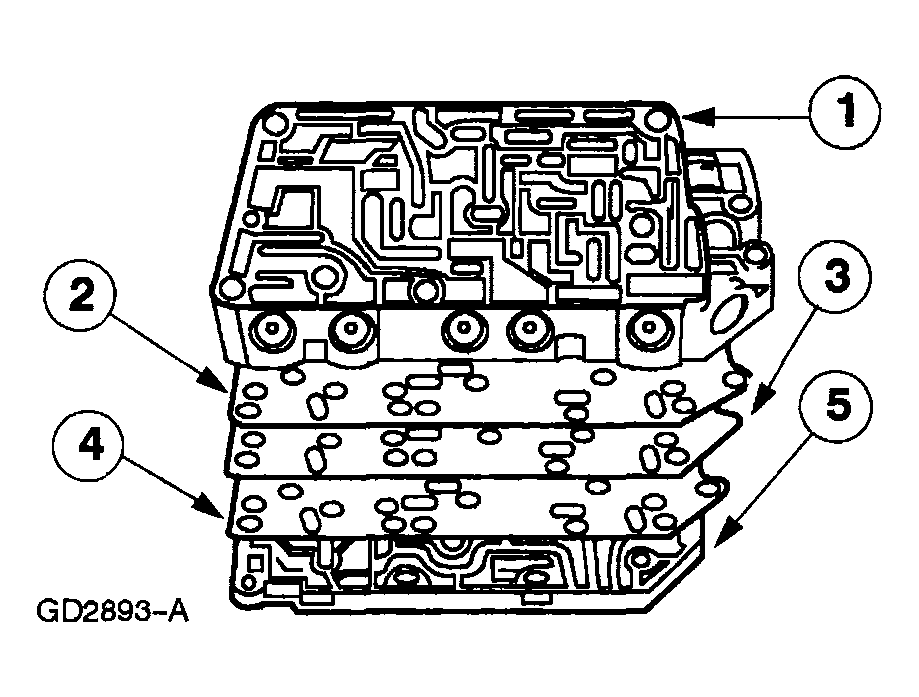

      Fig 9: Removing Transfer Plate From Main Control Valve Body
      G04321373Courtesy of MAZDA MOTORS CORP.
  9. Separate the transfer plate from the main control valve body.
    1. Remove the main control valve body.
    2. Remove and discard the valve body separator plate gasket.
    3. Remove the valve body separator plate.
    4. Remove and discard the valve body separator plate gasket.
    5. Remove the transfer plate.
      Fig 10: Removing Intermediate And Overdrive Accumulator Valve Plug Retaining Plate
      G04321374Courtesy of MAZDA MOTORS CORP.
  10. Remove the intermediate and overdrive accumulator valve plug retaining plate from the accumulator body assembly.
    Fig 11: Removing Intermediate And Overdrive Accumulator Valve Plug
    G04321375Courtesy of MAZDA MOTORS CORP.
  11. Remove the intermediate and overdrive accumulator valve plug.
    Fig 12: Removing Intermediate And Overdrive Accumulator Plug Seal
    G04321376Courtesy of MAZDA MOTORS CORP.
  12. Remove and discard the intermediate and overdrive accumulator plug seal.
    CAUTION:
    • Remove, note location and clean one valve at a time to avoid incorrect installation.
  13. As necessary, disassemble the parts of the accumulator body and main control valve body assemblies.
    • Lubricate and reassemble the parts as soon as possible to avoid accidental damage or incorrect installation.
