Air Duct: Service and Repair
REAR HEAT DUCT REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the following parts.
1. Front seat
2. Audio amplifier (Bose)
3. Woofer (Bose)
4. Front scuff plate
5. Console
6. Front side trim
7. Rear scuff plate
8. B-pillar lower trim
9. Lower anchor of the front seat belt
10. Tire house trim
11. Fuel-filler lid opener lever cover
12. Floor covering

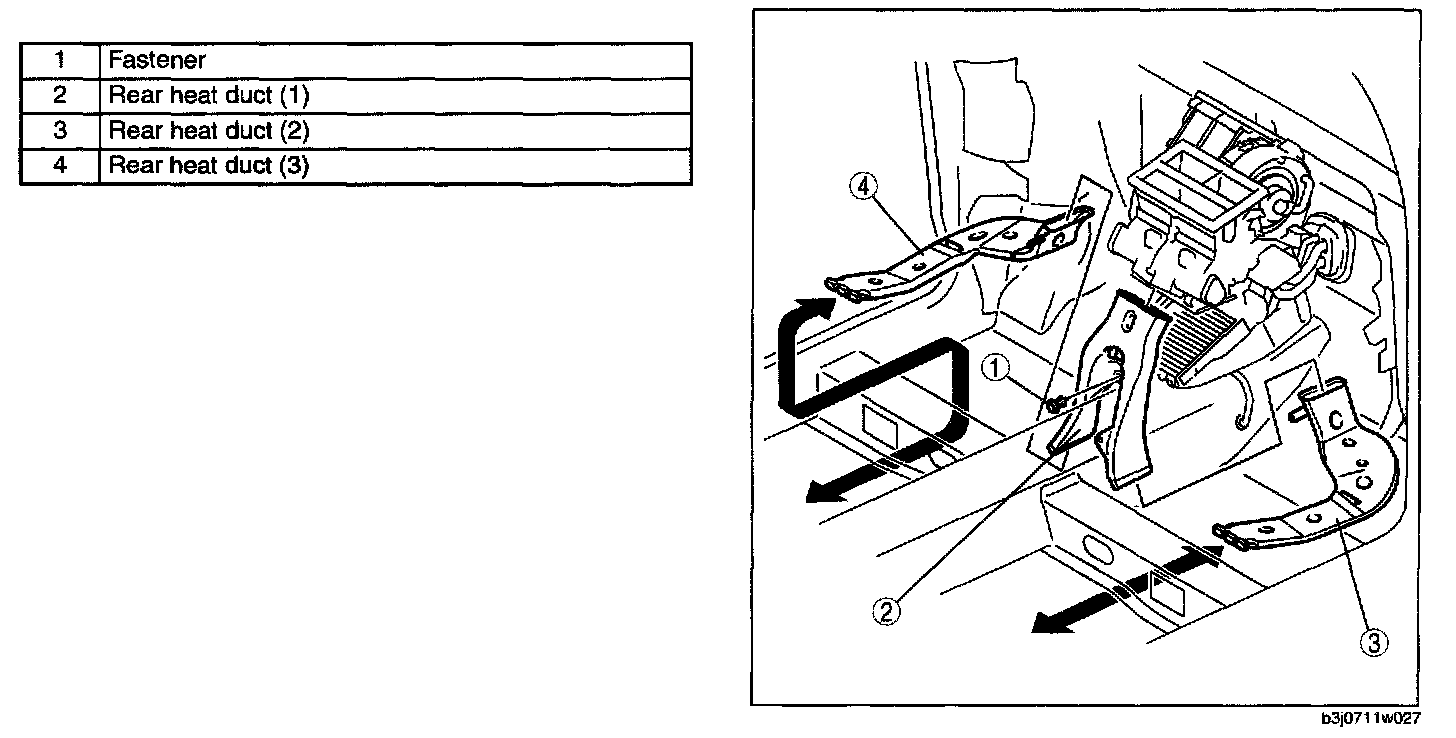

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
