Front HO2S Circuit Open/Short Inspection (Sensor): Notes

  1. Disconnect the PCM connector.
  2. Disconnect the front HO2S connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
    Fig 1: Identifying Front HO2S Connector Terminals
    G04955353Courtesy of MAZDA MOTORS CORP.

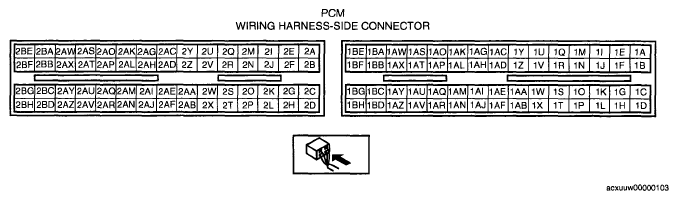

    Fig 2: PCM Connector Terminal Identification
    G04859829Courtesy of MAZDA MOTORS CORP.
