Quick Diagnostic Chart

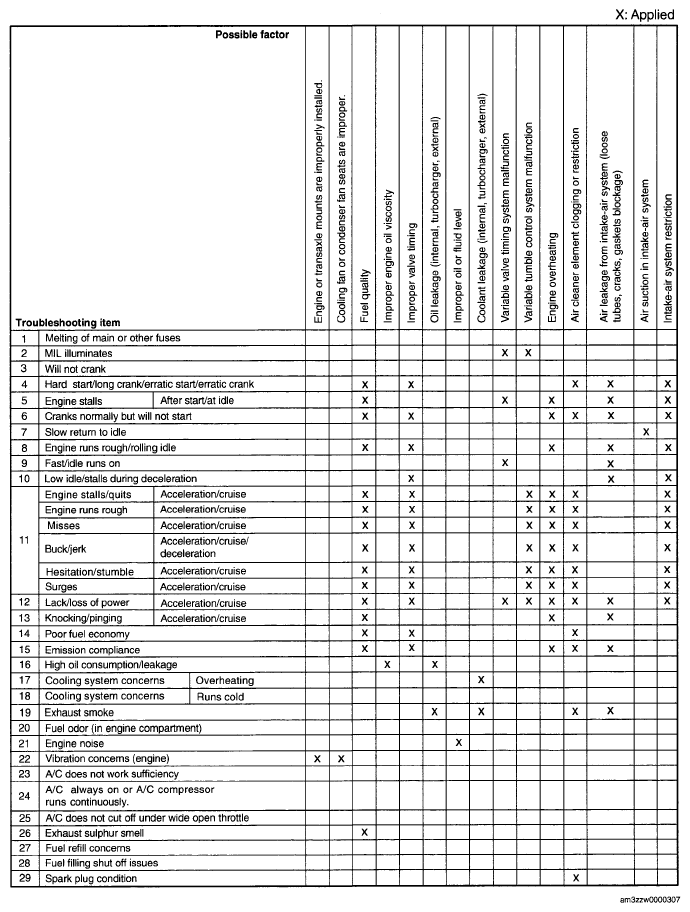

Fig 1: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

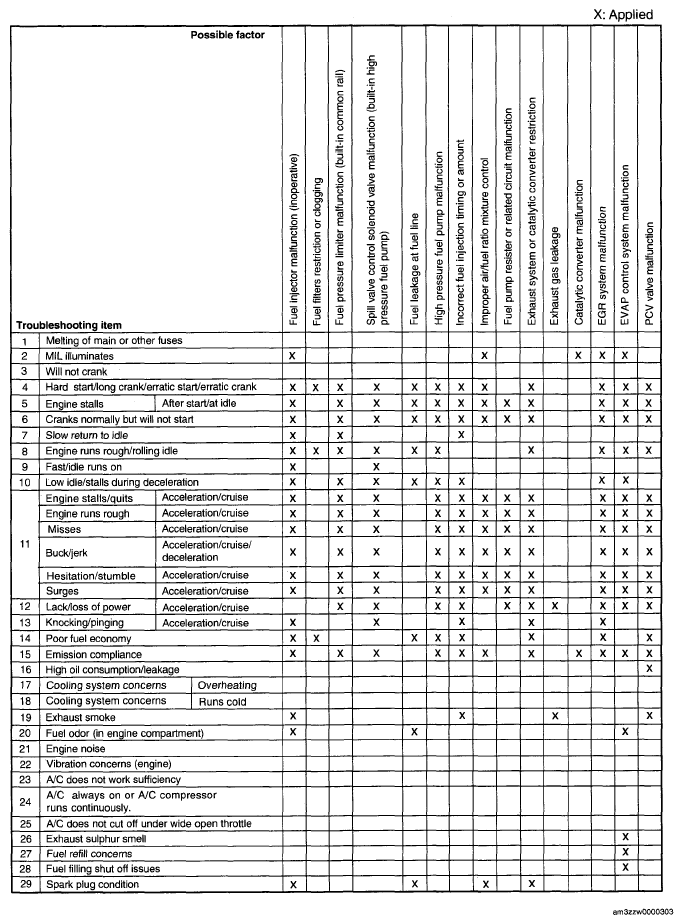

Fig 2: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

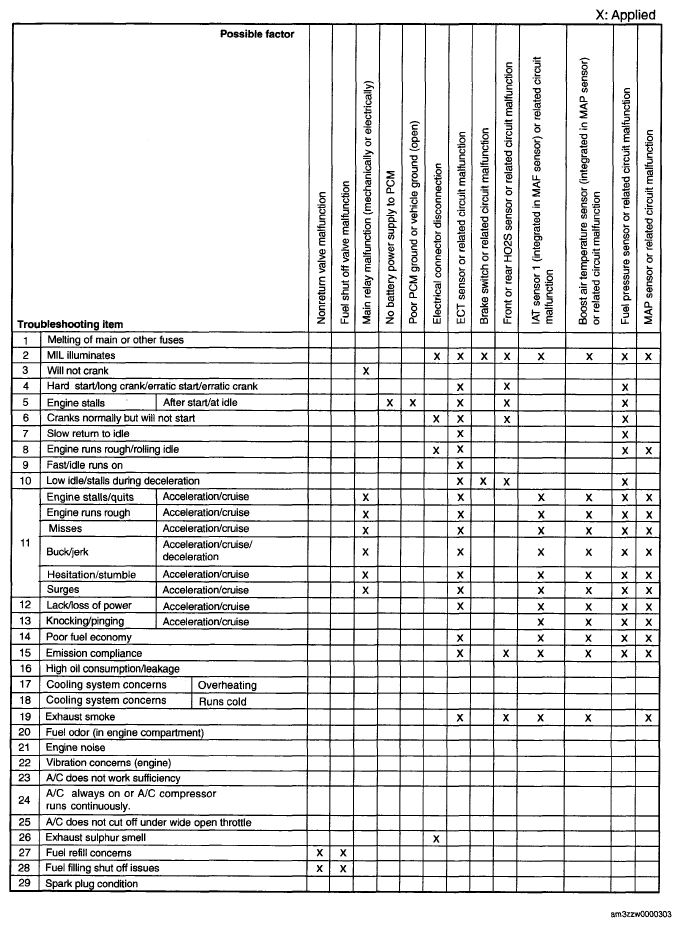

Fig 3: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

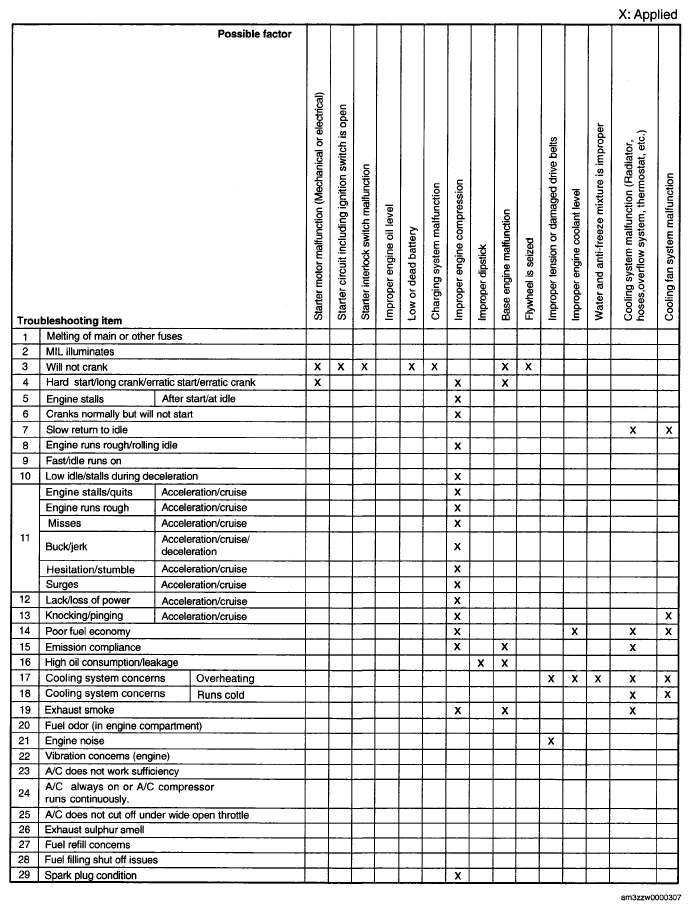

Fig 4: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

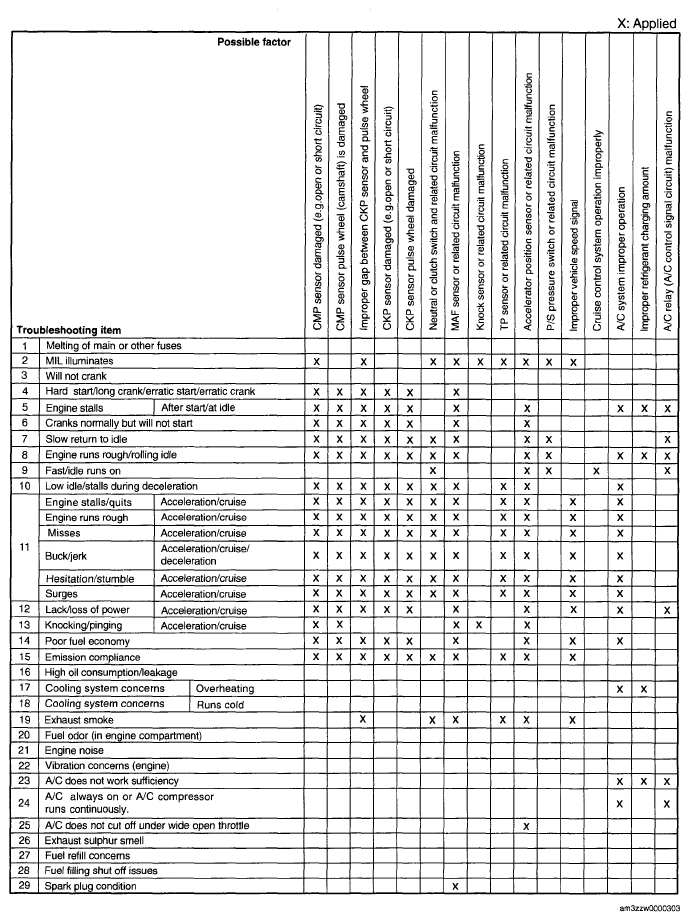

Fig 5: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

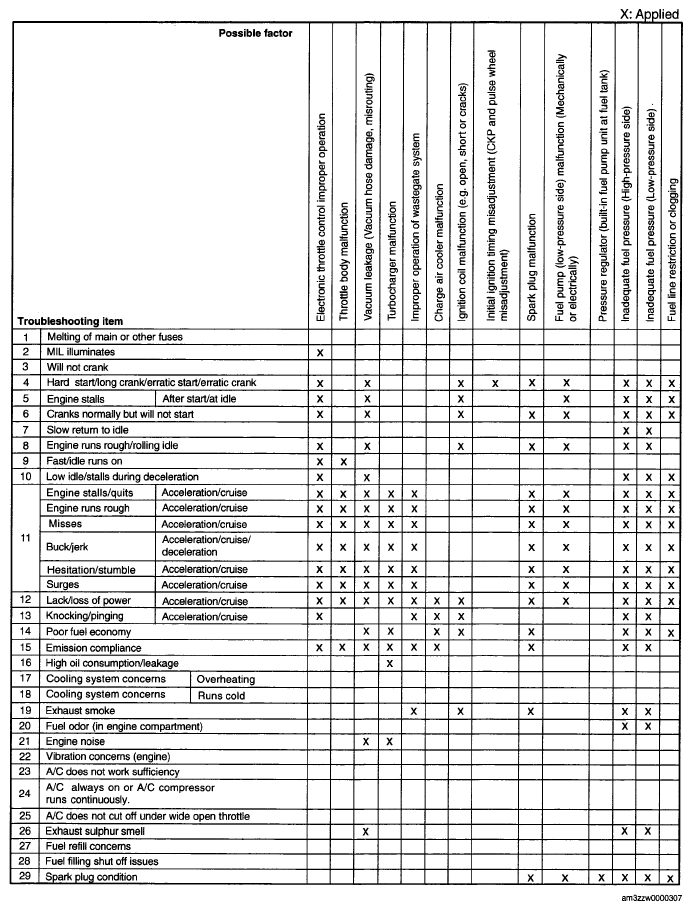

Fig 6: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

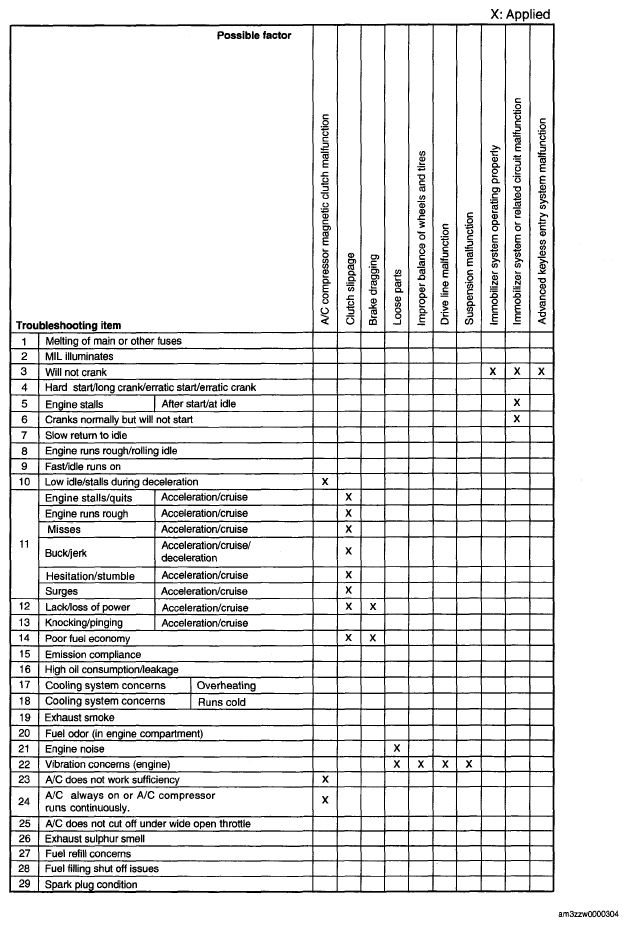

Fig 7: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
