Door Lock Switch Removal/Installation[Advanced Keyless System]: RH

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the door lock switch.
  4. Install in the reverse order of removal.

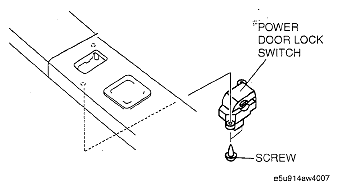

Fig 1: Identifying Power Door Lock Switch And Screw
G04931307Courtesy of MAZDA MOTORS CORP.
