Hood Latch And Release Lever Removal/Installation[Advanced Keyless System]: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

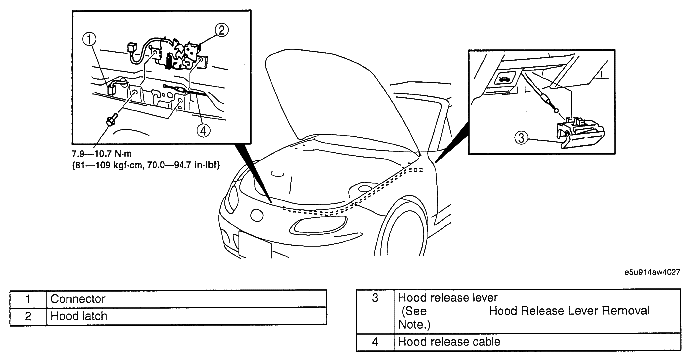

Fig 1: Hood Latch And Release Lever Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the hood. (See HOOD ADJUSTMENT .)
