Hood Striker Removal/Installation[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt, then remove the hood striker. HOOD STRIKER
  2. Install in the reverse order of removal.

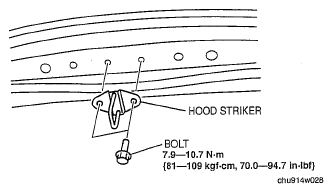

Fig 1: Hood Striker And Bolt With Torque Specifications
G04928892Courtesy of MAZDA MOTORS CORP.
