Inner Handle Removal/Installation[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  2. Remove the screws, then remove the inner handle.
  3. Detach the cables from the inner handle and door lock knob.
  4. Install in the reverse order of removal.

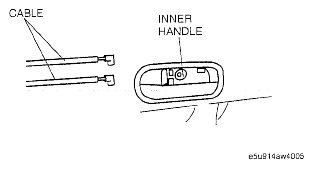

Fig 1: Identifying Inner Handle And Cable
G04931319Courtesy of MAZDA MOTORS CORP.
