Driver-side/passenger-side Door

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

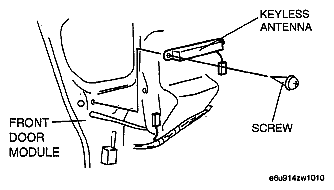

Fig 1: Identifying Keyless Antenna Remove/Install Components (Door)
G04931352Courtesy of MAZDA MOTORS CORP.
