Interior, Front

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the side panel. (See SIDE PANEL REMOVAL/INSTALLATION .)
  4. Partially peel back the floor covering so that the foot support can be removed.
  5. Remove the foot support.
  6. Disconnect the connector, then remove the screws.
  7. Remove the keyless antenna.

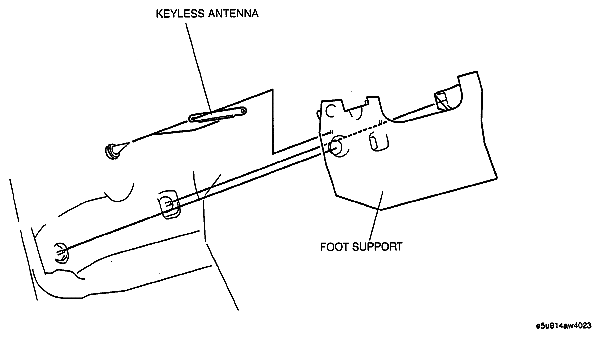

    Fig 1: Identifying Keyless Antenna And Foot Support
    G04931354Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
