Interior, Middle

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  4. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
  5. Remove the clips.
  6. Disconnect the connector, then remove the keyless antenna.
  7. Install in the reverse order of removal.

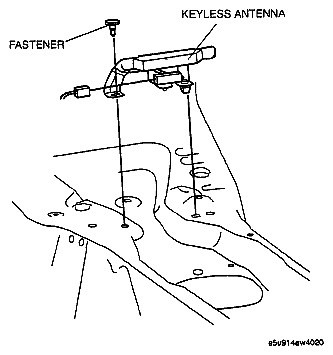

Fig 1: Identifying Keyless Antenna And Fastener
G04931355Courtesy of MAZDA MOTORS CORP.
