Keyless Control Module CONFIGULATION[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Connect the M-MDS to the DLC-2 connector.
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
  1. Select "Module Programming".
- When using the PDS (Pocket PC)
  1. Select "Programming".
  2. Select "Module Programming".
Then, select the "Programmable Module Installation" and "RKE" from the screen menu.
Perform the configuration according to the directions on the screen.
Retrieve DTCs using the M-MDS, then verify if DTCs are present.
- If a DTC is present, perform the applicable DTC inspection. (See DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS SYSTEM)] .)

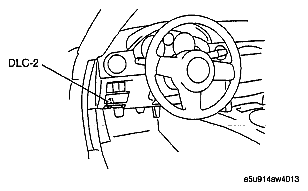

Fig 1: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.
