Keyless Receiver Removal/Installation[Advanced Keyless System]: Front

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the glove compartment lid. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the keyless receiver module connector.
  4. Remove the nut, then remove the keyless receiver (front).
  5. Install in the reverse order of removal.

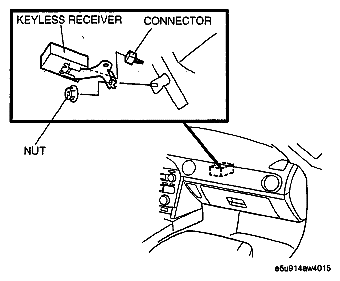

Fig 1: Identifying Keyless Receiver Remove/Install Components (Front)
G04931349Courtesy of MAZDA MOTORS CORP.
