Keyless Receiver Removal/Installation[Advanced Keyless System]: Rear

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.
  4. Disconnect the connector.
  5. Remove the keyless receiver (rear).
  6. Install in the reverse order of removal.

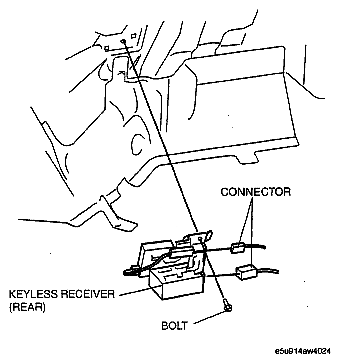

Fig 1: Identifying Keyless Receiver Remove/Install Components (Rear)
G04931350Courtesy of MAZDA MOTORS CORP.
