Open Hook Removal/Installation[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION .)
    2. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
    3. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION .)
    6. Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
    7. Back trim (See BACK TRIM REMOVAL/INSTALLATION .)
    8. Seat back bar lower garnish (See SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the bolts.
  3. Remove the open hook.
  4. Install in the reverse order of removal.

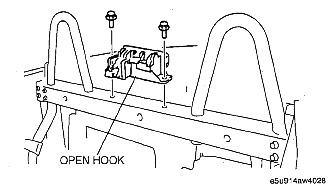

Fig 1: Identifying Open Hook
G04931320Courtesy of MAZDA MOTORS CORP.


  1. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION .)
    2. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
    3. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION .)
    6. Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
    7. Back trim (See BACK TRIM REMOVAL/INSTALLATION .)
    8. Seat back bar lower garnish (See SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the bolts.
  3. Remove the open hook.
  4. Install in the reverse order of removal.

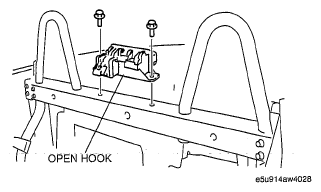

Fig 1: Identifying Open Hook
G04931334Courtesy of MAZDA MOTORS CORP.
