Outer Handle Removal/Installation[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
    2. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)
    3. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Door unit (See DOOR UNIT REMOVAL/INSTALLATION .)
  2. Detach the rod from the outer handle.
  3. Remove the cover.
  4. Remove the bolts.

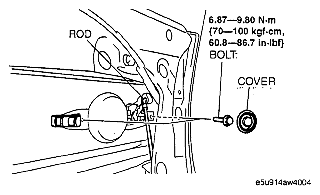

    Fig 1: Outer Handle Bolts With Torque Specifications
    G04931317Courtesy of MAZDA MOTORS CORP.
  5. Secure the rear part of the front outer handle and, with the front outer handle lever pulled outward (1), remove the rear part of the front outer handle from the front door.
  6. Pull out the front part of the front outer handle from the front door.
  7. Install in the reverse order of removal.

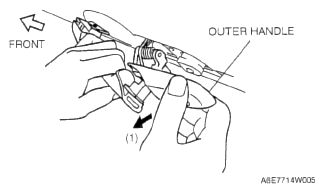

Fig 2: Removing Rear Part Of Front Outer Handle From Front Door
G04928865Courtesy of MAZDA MOTORS CORP.
