Trunk Lid

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Open the trunk lid.
  3. Remove the request switch.
  4. Install in the reverse order of removal.

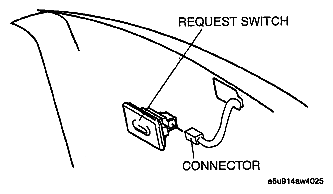

Fig 1: Identifying Request Switch And Connector
G04931360Courtesy of MAZDA MOTORS CORP.
