Trunk Lid Opener Inspection[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply battery positive voltage and connect the ground to the corresponding the trunk lid opener terminals, and inspect the trunk lid opener operation.
    • If the trunk lid opener does not operate as indicated in the table, replace the trunk lid opener.
    TRUNK LID OPENER OPERATION REFERENCE

    Operation Terminal
    A B
    Unlocks B+ Ground

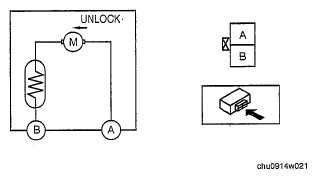

    Fig 1: Identifying Trunk Lid Opener Connector Terminals With Circuit
    G04928930Courtesy of MAZDA MOTORS CORP.
