Trunk Lid Opener Switch Inspection[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk lid open switch.
Inspect for continuity between the trunk lid open switch terminals.
- If not as specified, replace the trunk lid open switch.
: Continuity

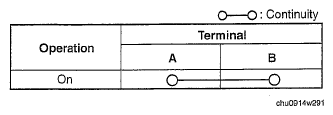

Fig 1: Trunk Lid Opener Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Trunk Lid Opener Switch Terminals With Circuit
Courtesy of MAZDA MOTORS CORP.
