Trunk Lid Striker Removal/Installation[Advanced Keyless System]

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the trunk lid striker.
  3. Install in the reverse order of removal.

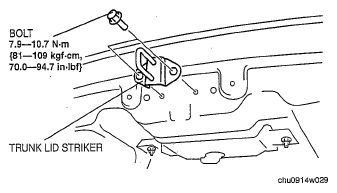

Fig 1: Trunk Lid Striker And Bolt With Torque Specifications
G04931364Courtesy of MAZDA MOTORS CORP.
