California Emission Regulation Applicable Model with LF ATX

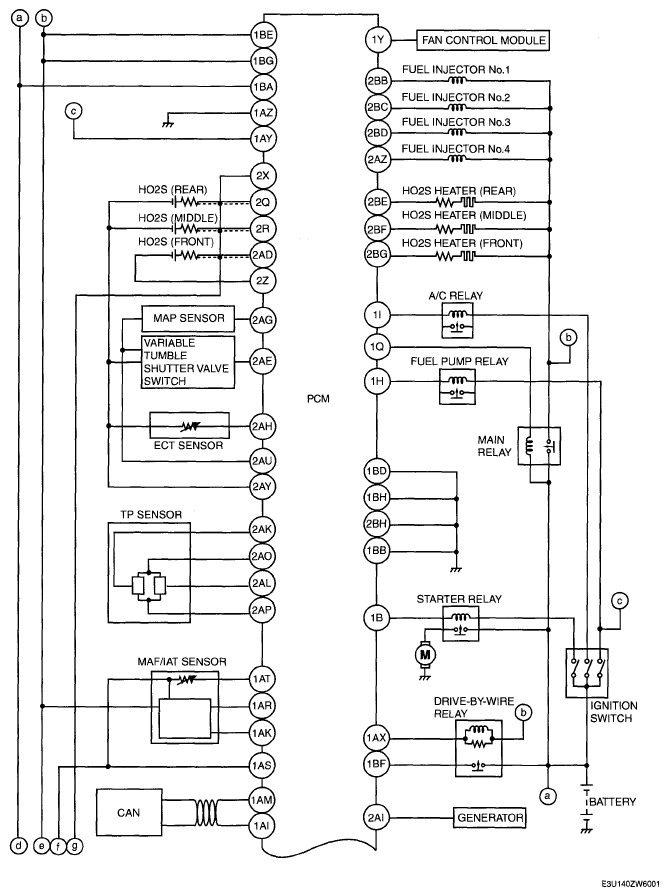

Fig 1: Control System Wiring Diagram - California Emission Regulation Applicable Model With LF ATX (1 Of 2)
G04955184Courtesy of MAZDA MOTORS CORP.

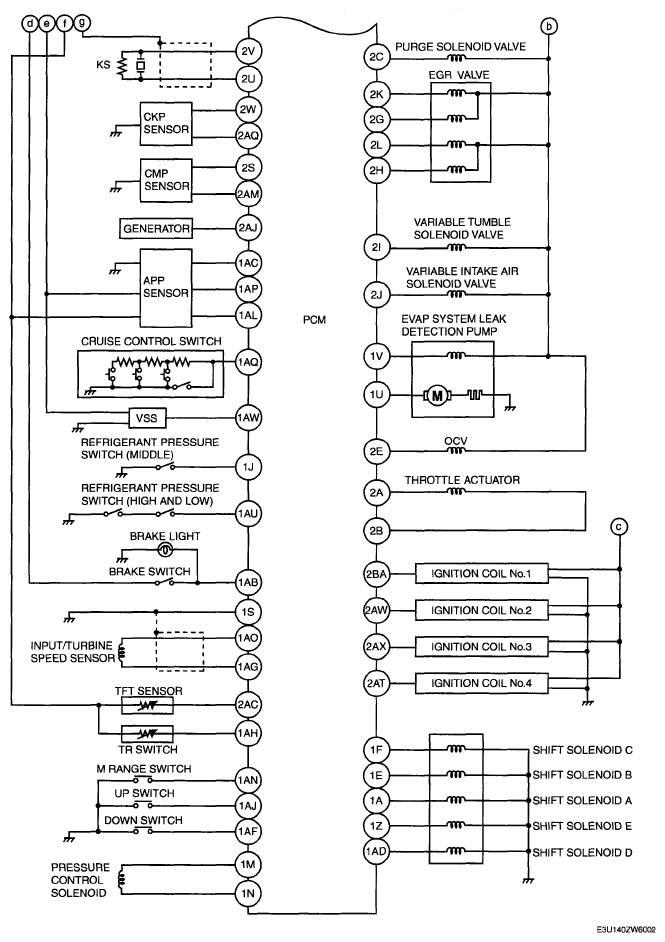

Fig 2: Control System Wiring Diagram - California Emission Regulation Applicable Model With LF ATX (2 Of 2)
G04955185Courtesy of MAZDA MOTORS CORP.
