Except for California Emission Regulation Applicable Model with LF ATX

Fig 1: Control System Wiring Diagram - Except For California Emission Regulation Applicable Model With LF ATX (1 Of 2)
G04955188Courtesy of MAZDA MOTORS CORP.

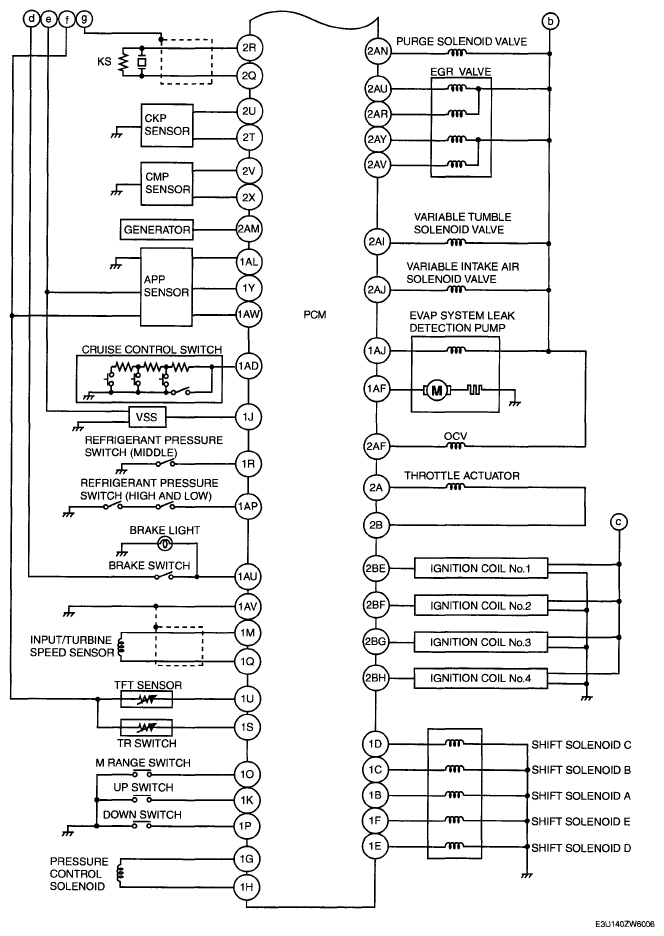

Fig 2: Control System Wiring Diagram - Except For California Emission Regulation Applicable Model With LF ATX (2 Of 2)
G04955189Courtesy of MAZDA MOTORS CORP.
