Monitoring System And Control System Device Relationship Chart
California Emission Regulation Applicable Model

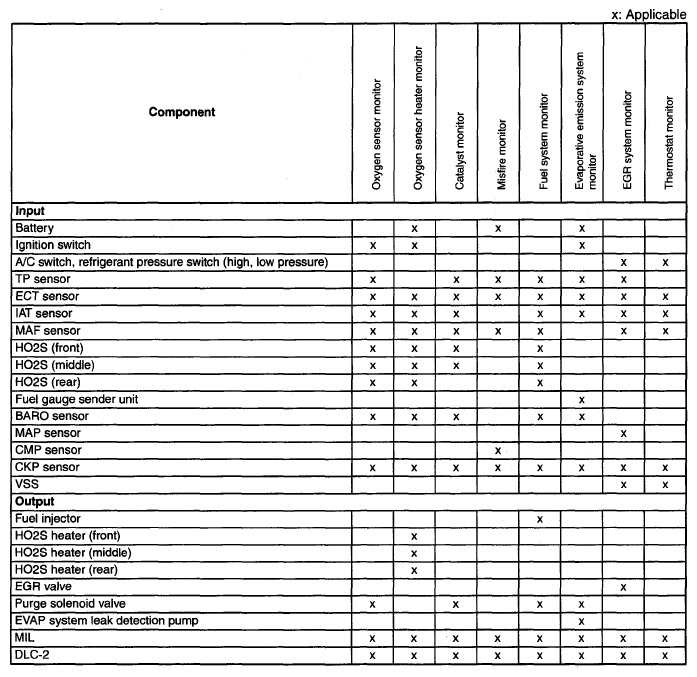

Fig 1: Monitoring System And Control System Device Relationship Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

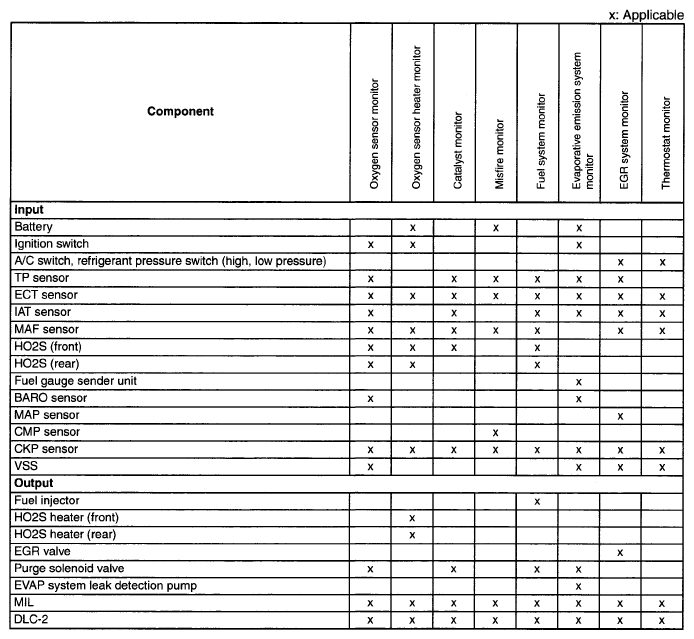

Fig 2: Monitoring System And Control System Device Relationship Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
