Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the front cup holder.
4. Remove in the order indicated in the table.






5. Install in the reverse order of removal.

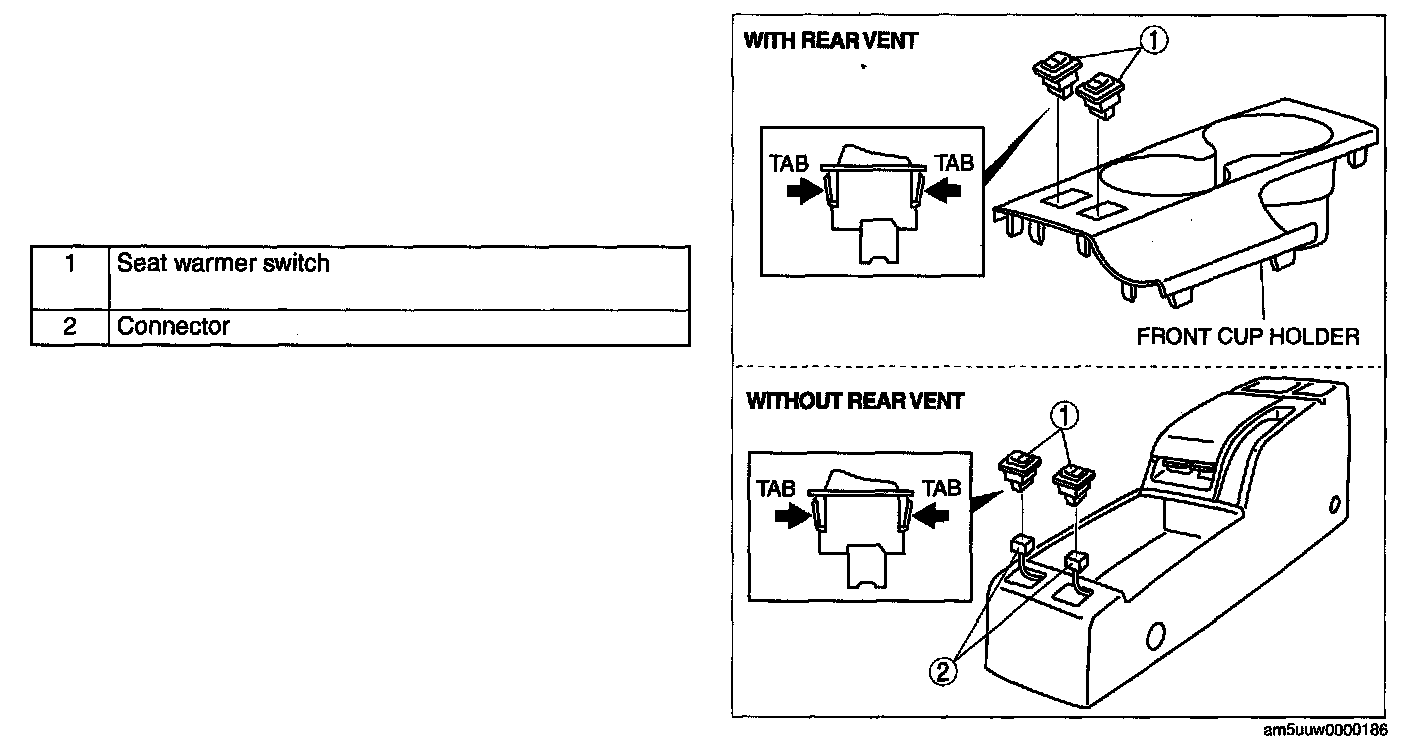

Seat Warmer Switch Removal Note
1. Squeeze the tabs of seat warmer switch and pull it outward to remove it.
