Removal/Installation

STARTER REMOVAL/INSTALLATION [L3]

WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the under cover.
4. Remove the clutch release cylinder with the pipes still connected. (MTX)

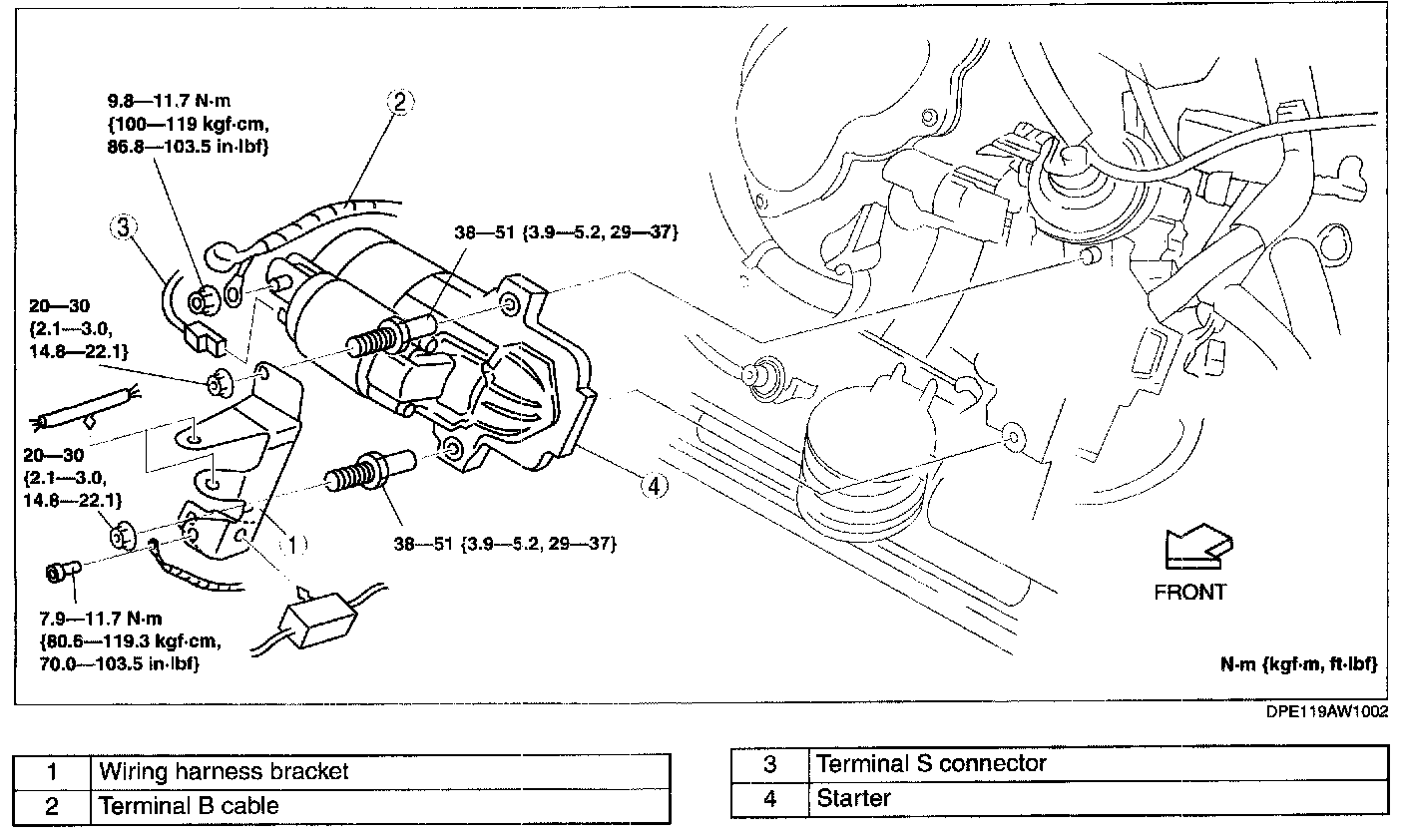

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
