Air Duct: Service and Repair

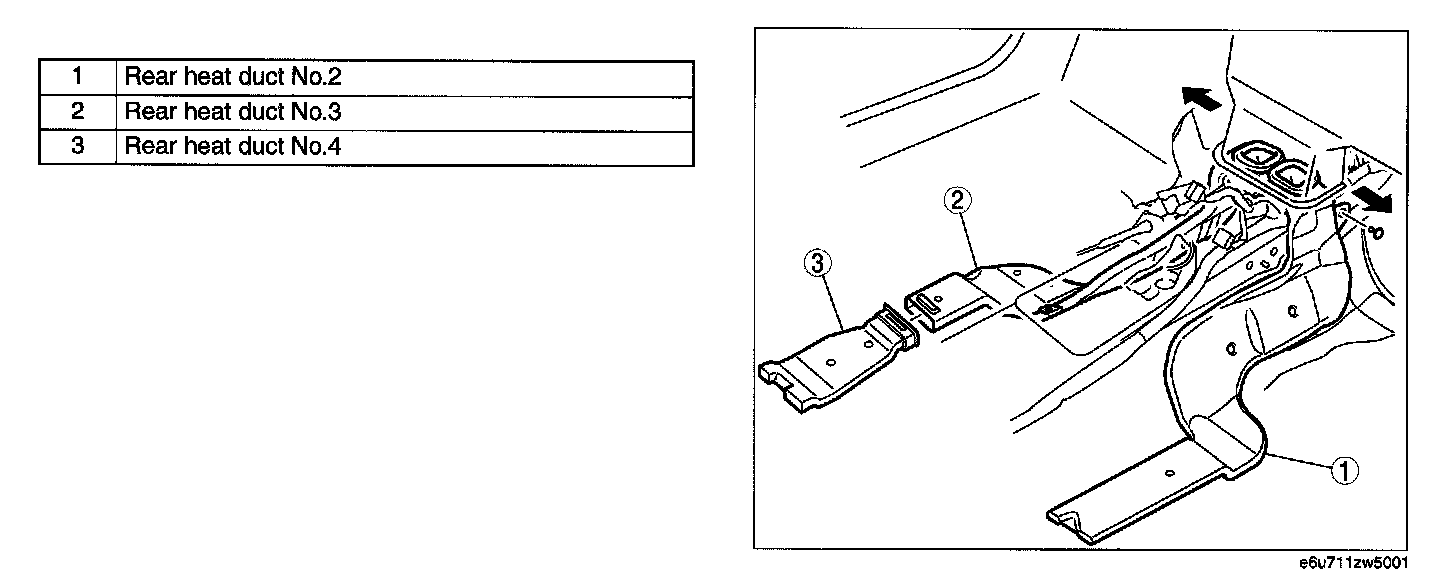

REAR HEAT DUCT REMOVAL/INSTALLATION [L3, AJ]
1. Turn over the floor covering.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
