Variable Valve Timing Actuator: Locations

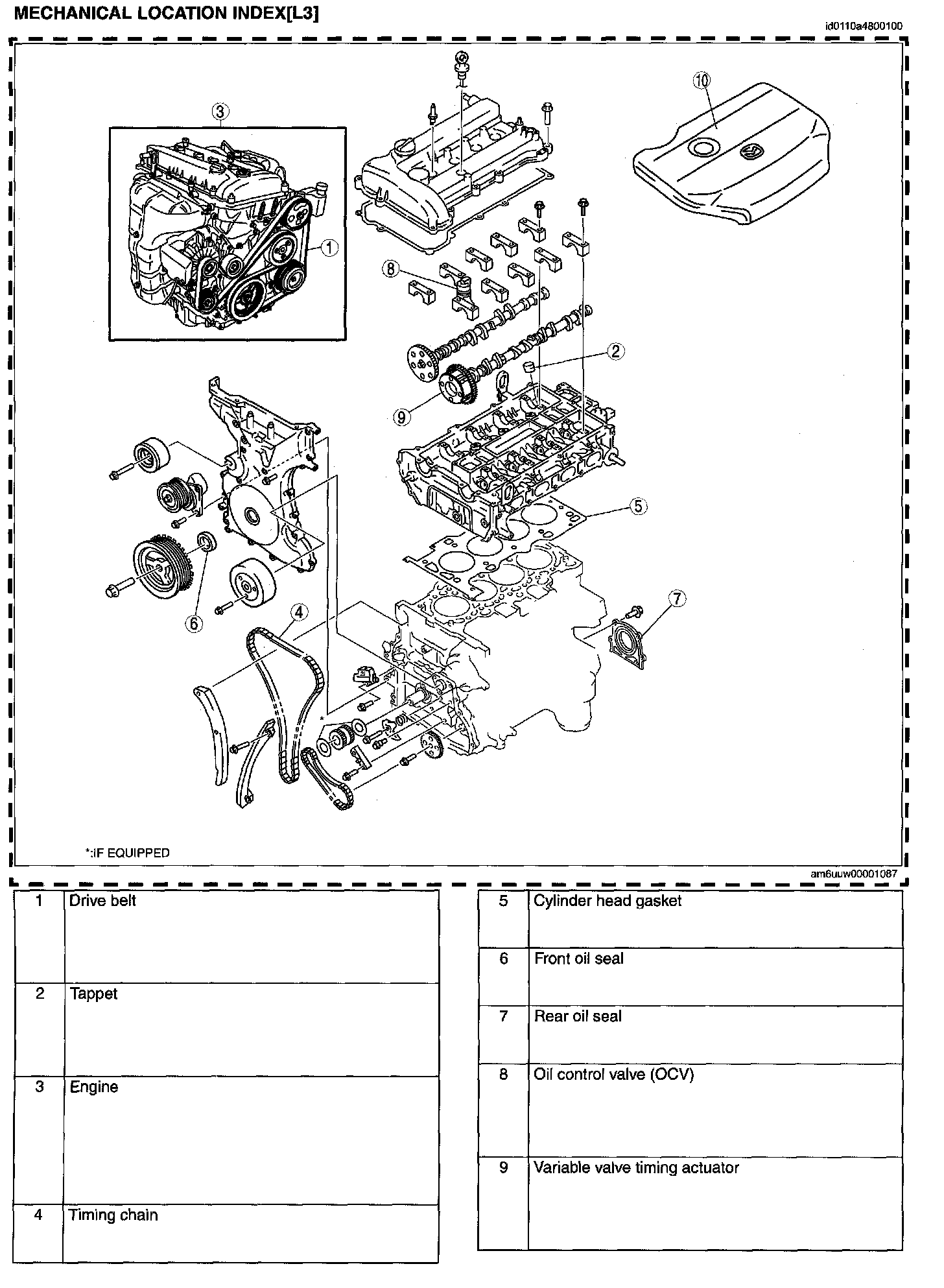

Mechanical Location Index (L3) (part 1):



Mechanical Location Index (L3) (part 2):
