ABS/TCS HU/CM Configuration

ABS/TCS HU/CM CONFIGURATION

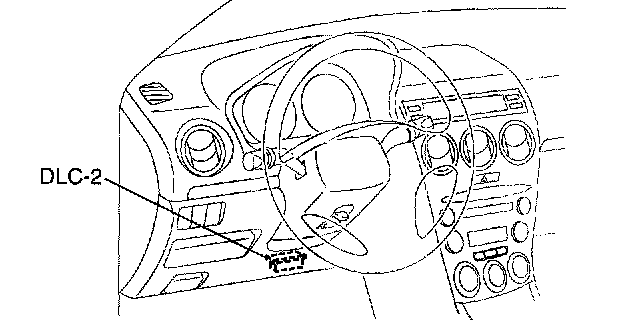

1. Connect the WDS or equivalent to the DLC-2.
2. Input vehicle information following the directions on the WDS or equivalent screen.
3. Select "MODULE PROGRAMMING".
4. Select "PROGRAMMABLE MODULE INSTALLATION".
5. Select "ABS/TCS".
6. Retrieve DTCs using the WDS or equivalent, then verify that there is no DTC present.
^ If any DTC is present, perform applicable DTC inspection.
