Overhaul

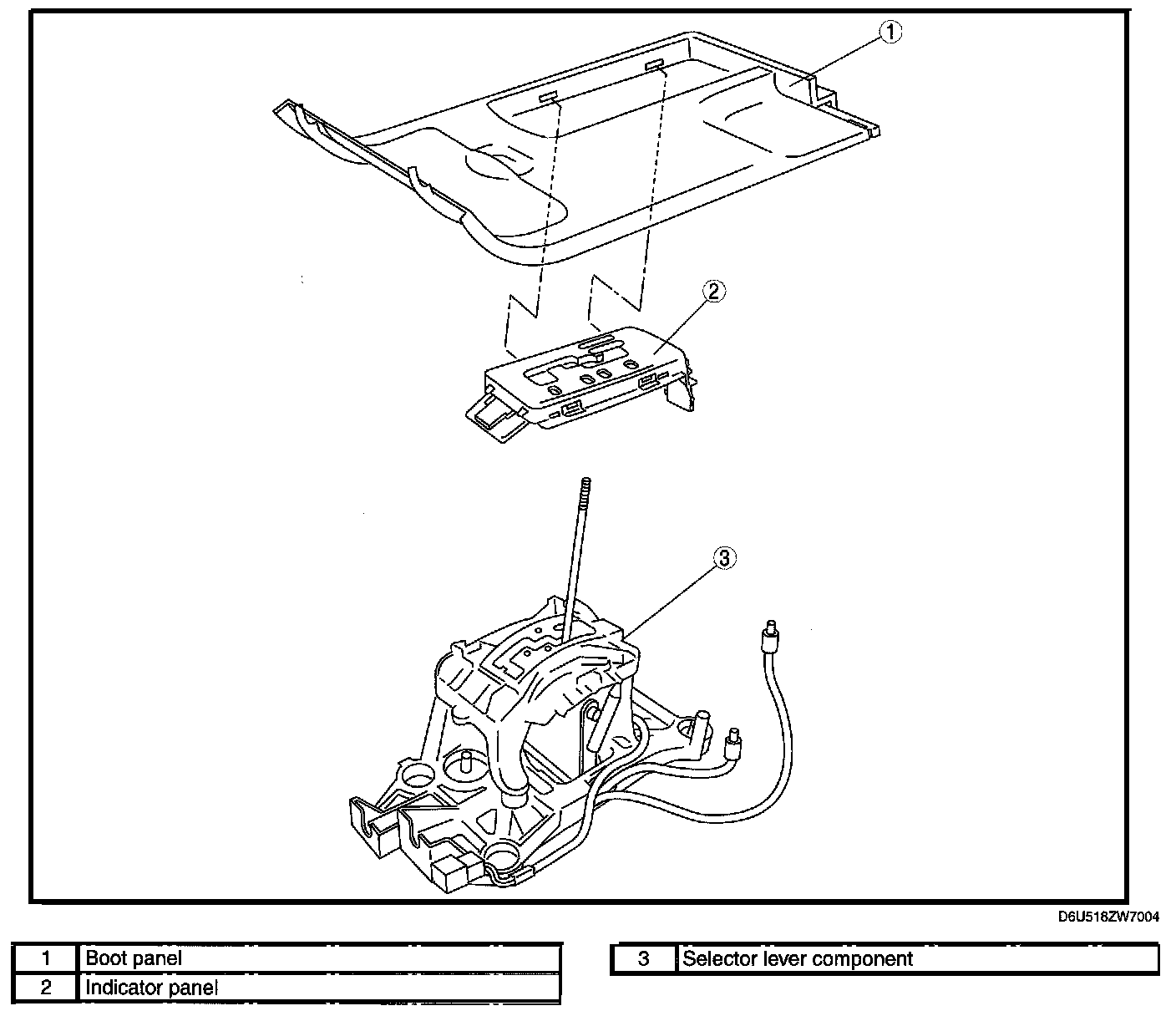

SELECTOR LEVER DISASSEMBLY/ASSEMBLY
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
