Assembly Components

Assembly Components

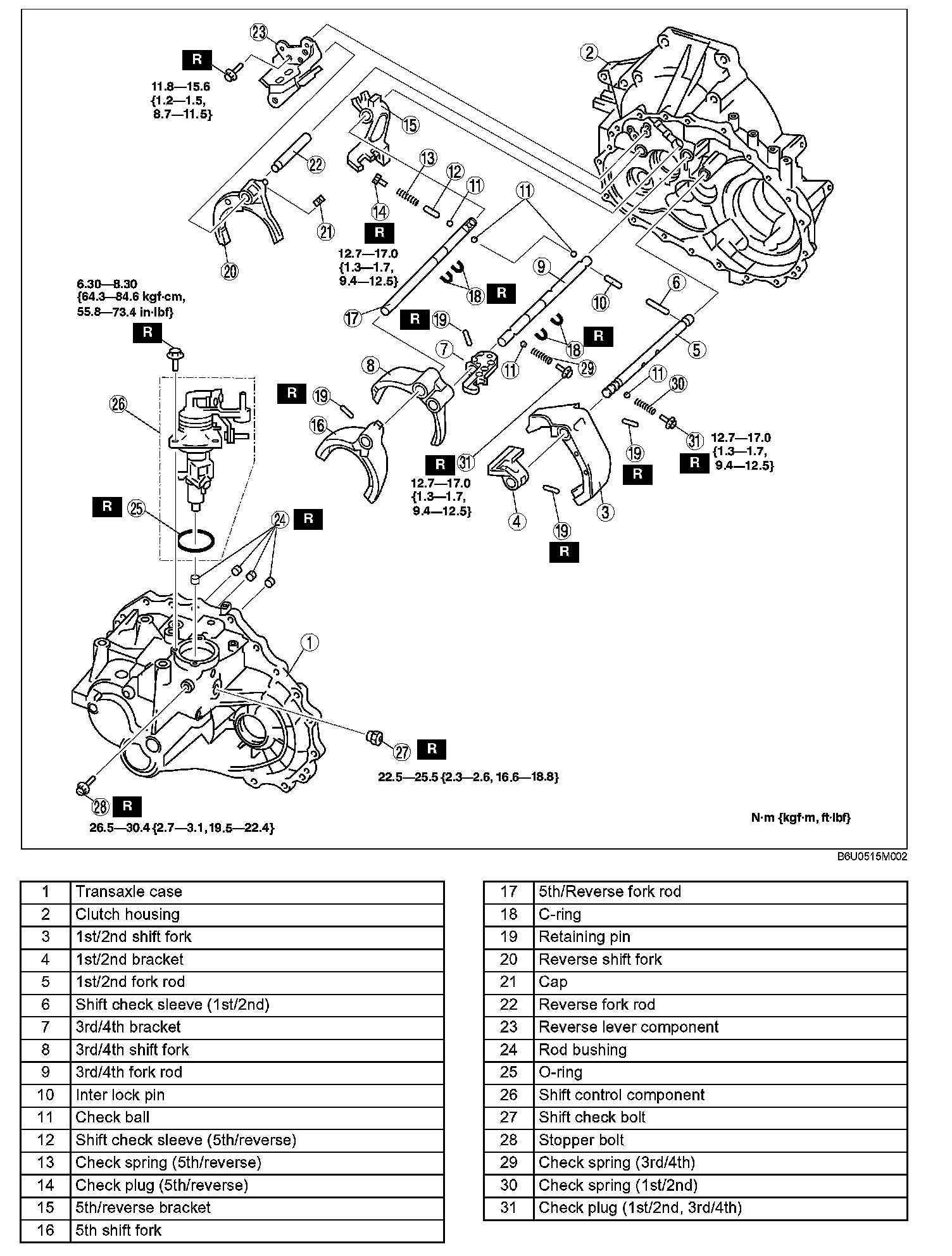

Clutch Housing and Transaxle Case Components Assembly (Part 1):

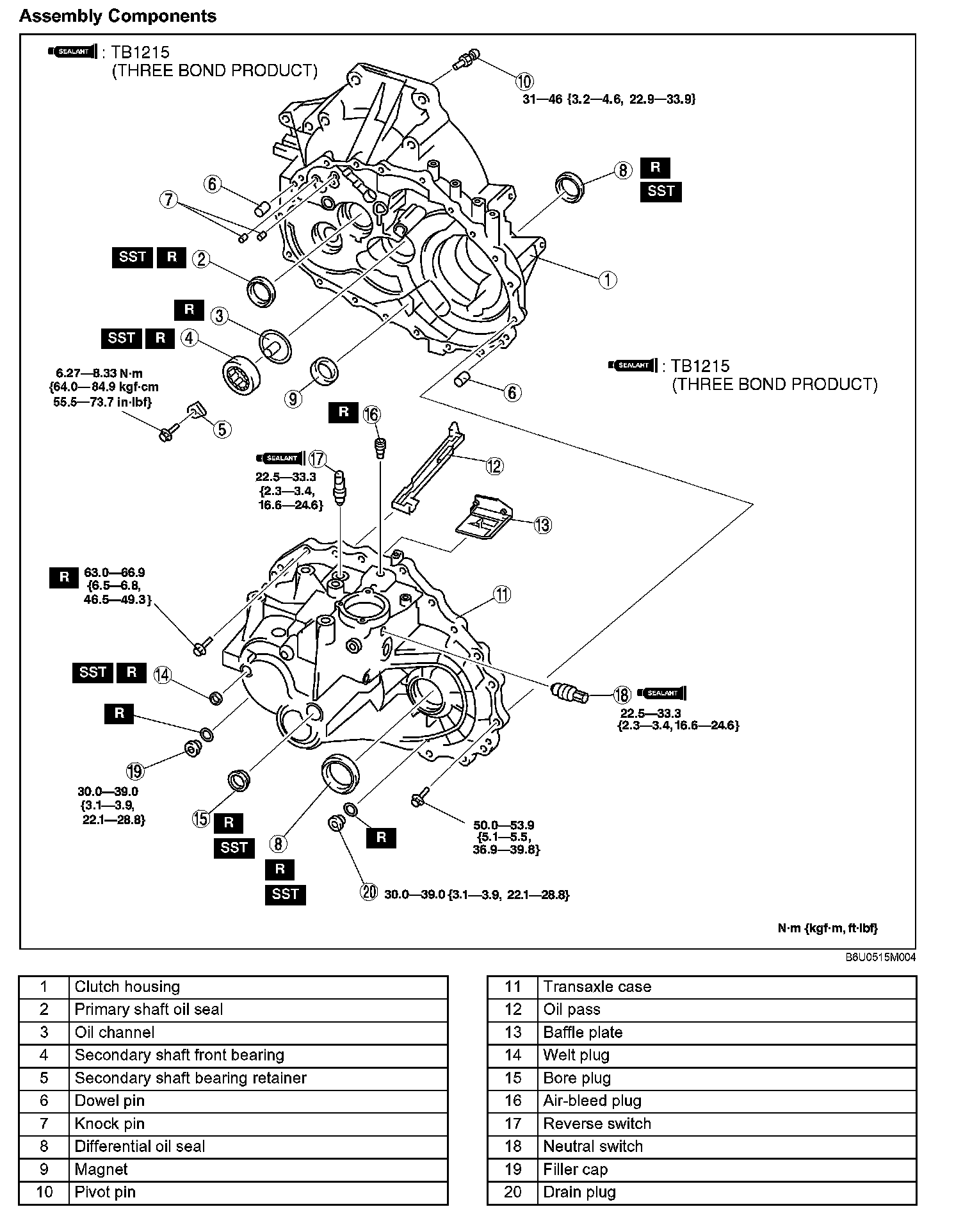

Clutch Housing and Transaxle Case Components Assembly (Part 2):
