Keyless Control Module Configuration [With Advanced Keyless System]

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
  1. Select "Module Programming".
- When using the PDS (Pocket PC)
  1. Select "Programming".
  2. Select "Module Programming".
Then, select items from the screen menu in the following order.
1. Select "Programmable Module Installation".
2. Select "RKE".
Perform the configuration according to the directions on the screen.

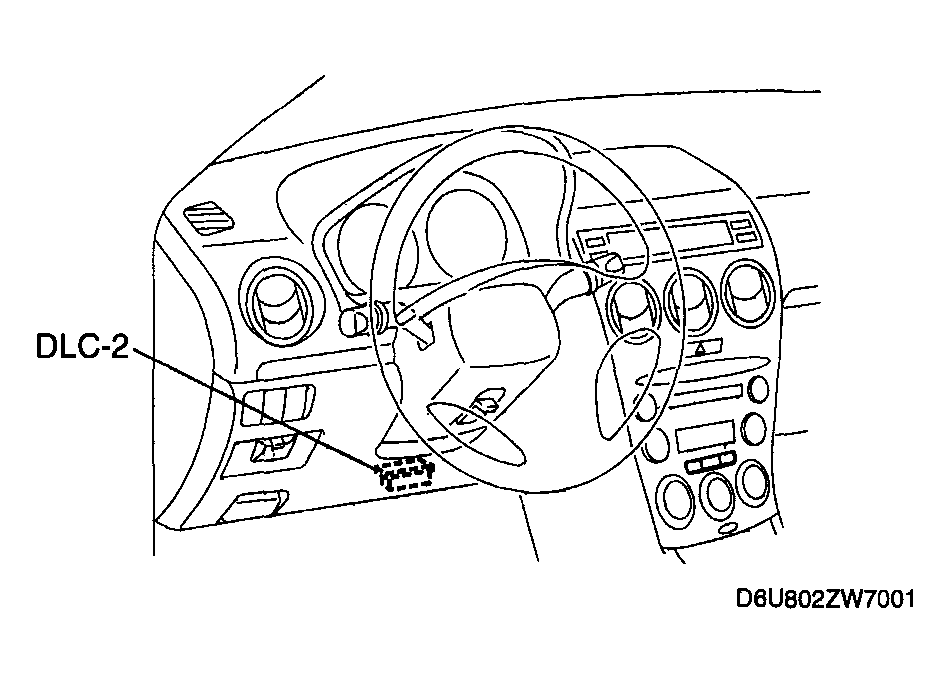

Fig 1: Locating DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.
