Transmitter Id Code Registration [Keyless Entry System]

NOTE:
  • When programming the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.

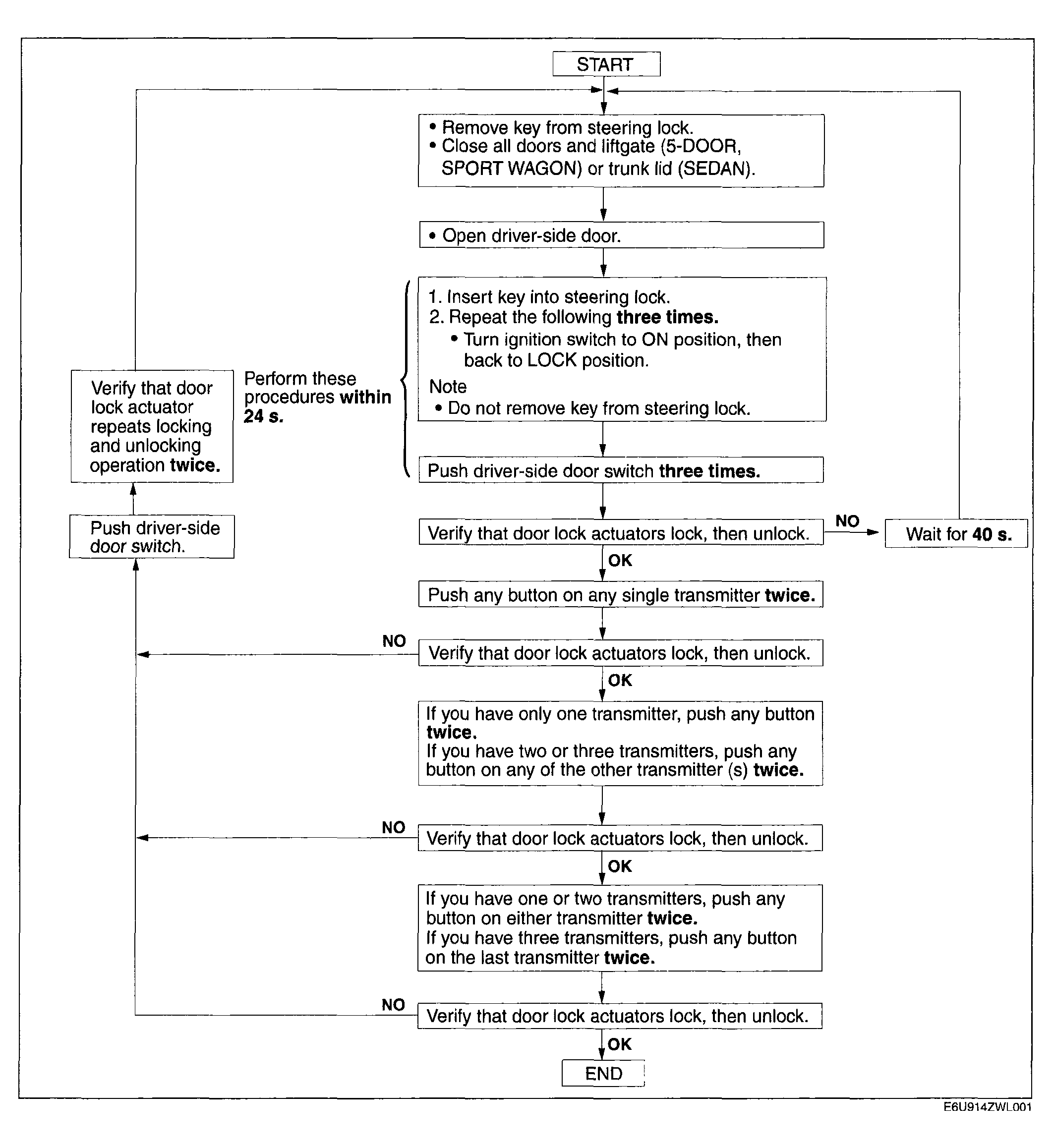

    Fig 1: Troubleshooting Flow Chart
    G04327385Courtesy of MAZDA MOTORS CORP.
