Clutch Pedal Position (CPP) Switch Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Open circuit
If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
Clutch switch terminal A and PCM terminal 1H
Clutch switch terminal B and body ground

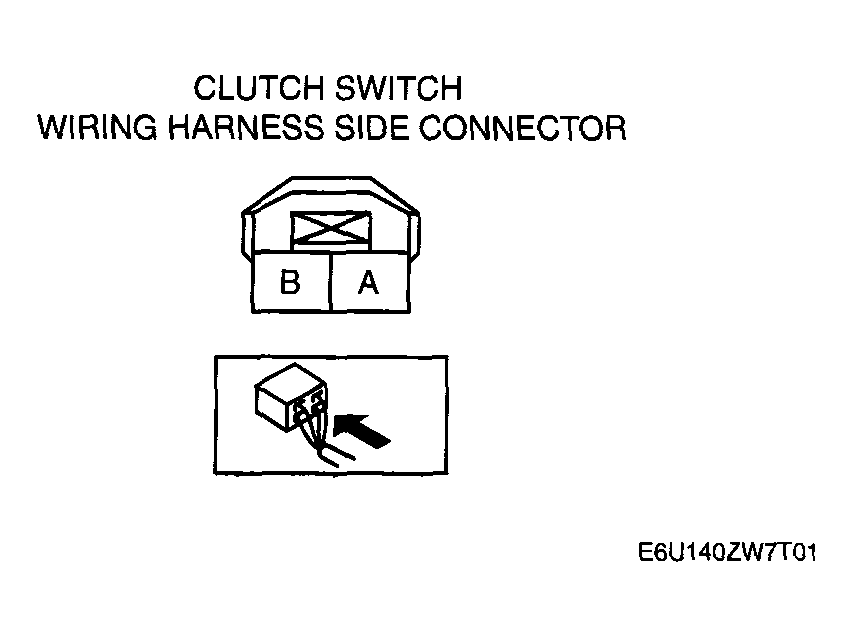

Fig 1: Identifying Clutch Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
