Audio Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

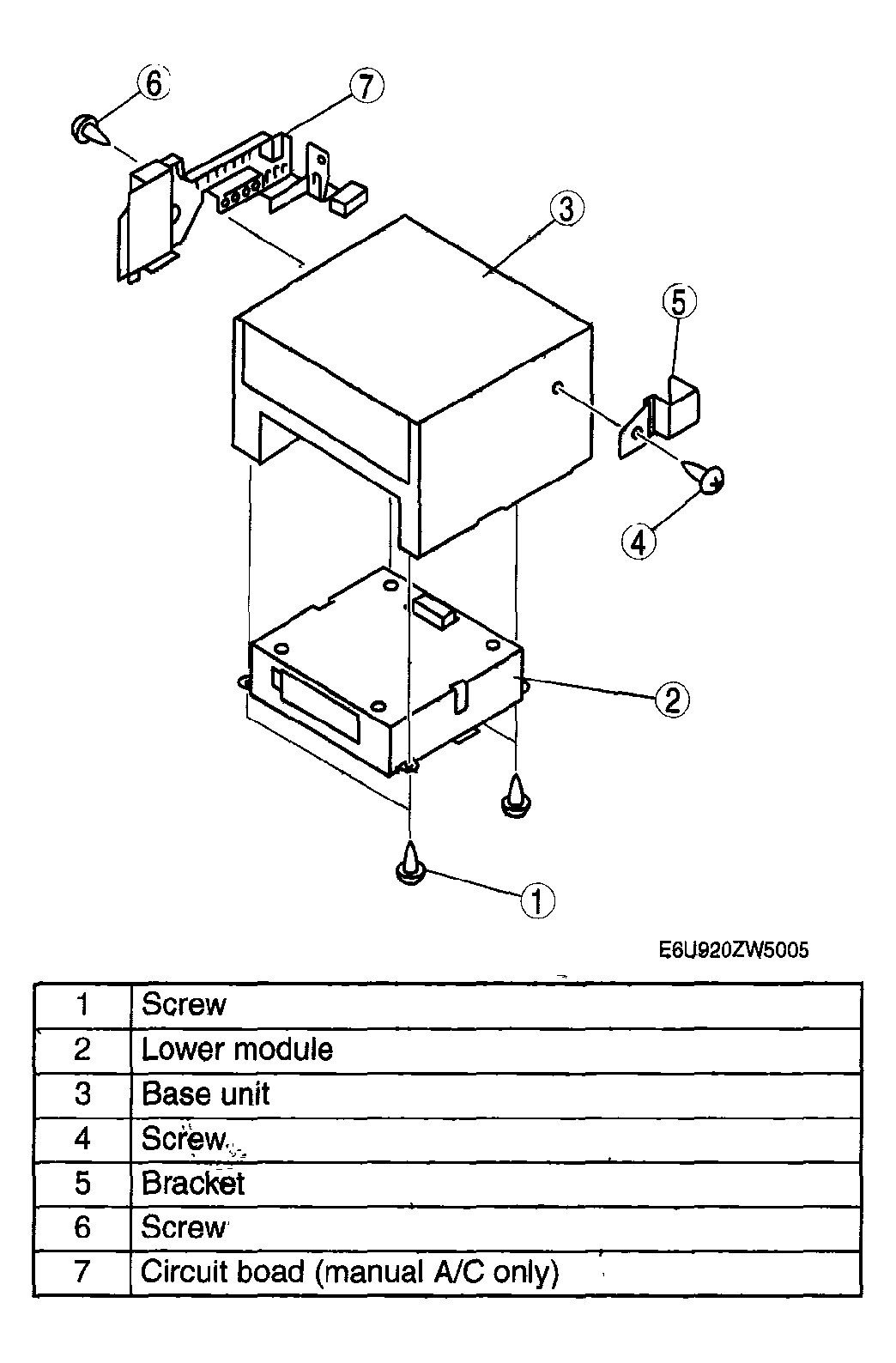

    Fig 1: Disassembling & Assembling Audio Unit
    G04327649Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
