LCD Unit Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the center panel module. (See CENTER PANEL UNIT REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

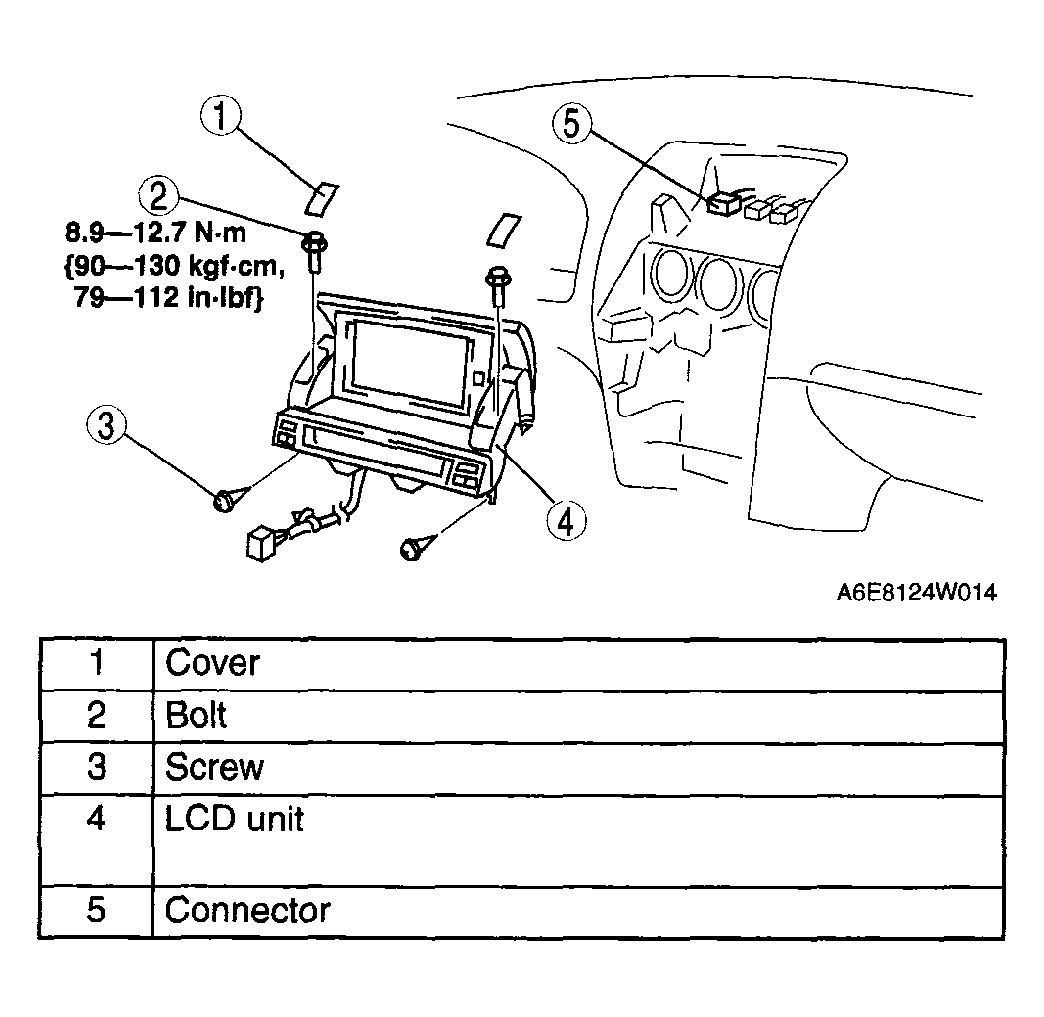

    Fig 1: LCD Unit & Torque Specification
    G04327651Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
