Hood Switch Inspection

NOTE:

Open the hood.
Disconnect the negative battery cable.
Remove the radiator grille.
Disconnect the hood switch connector.
Inspect for continuity between the hood switch terminals A and B using an ohmmeter.
- If there is no continuity, replace the hood switch.

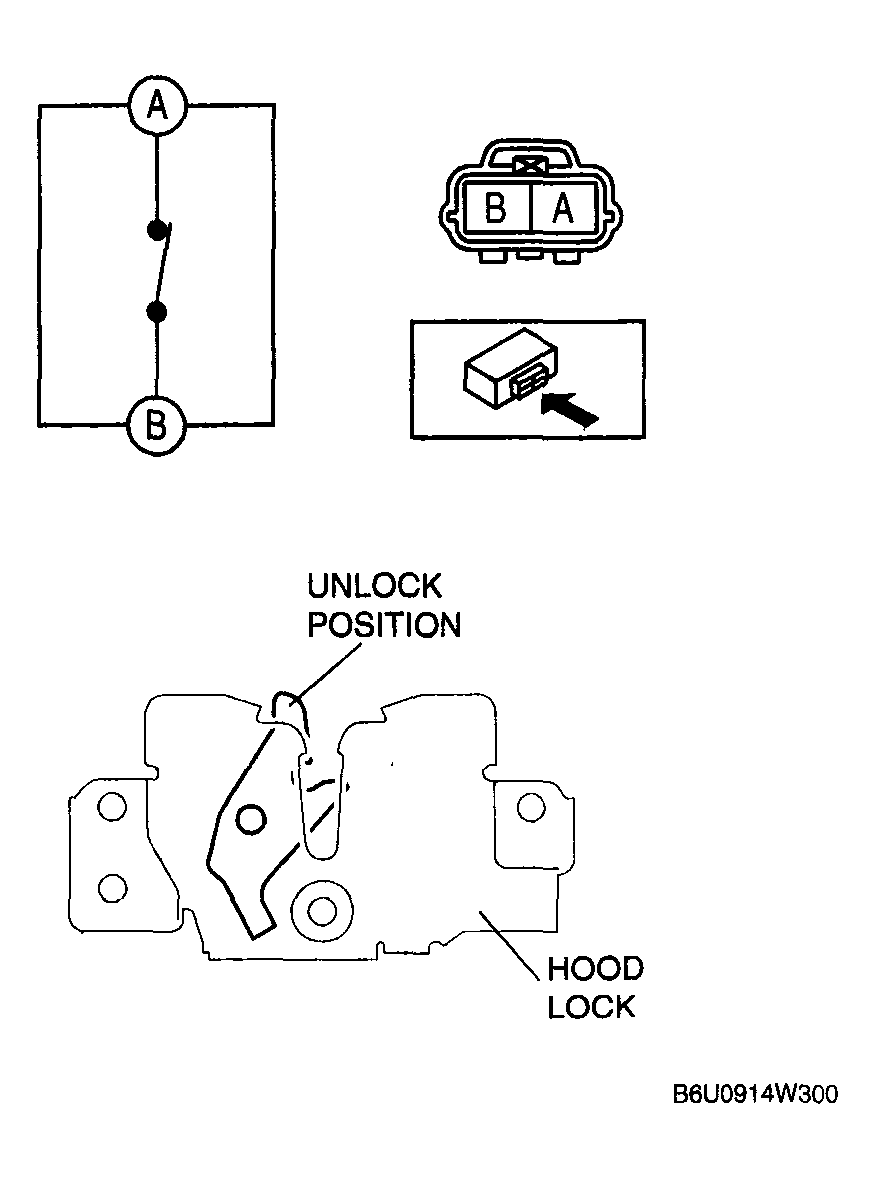

  Fig 1: Identifying Hood Lock Unlock Position
  Courtesy of MAZDA MOTORS CORP.
Lock the hood lock using a flathead screwdriver or equivalent as shown.
Inspect for continuity between the hood switch terminals A and B using an ohmmeter.
- If there is continuity, replace the hood switch.
  CAUTION:
  - After the inspection, unlock the hood lock. If closing the hood with the hood lock locked, the hood lock and/or hood striker may be broken.

    Fig 2: Locking Hood Lock Using Flathead Screwdriver
    Courtesy of MAZDA MOTORS CORP.
