Trunk Lid Open Cancel Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment.
  3. Squeeze the tabs of the trunk lid open cancel switch and pull it forward to remove it.
  4. Disconnect the trunk lid open cancel switch connector.
  5. Remove the trunk lid open cancel switch.
  6. Install in the reverse order of removal.

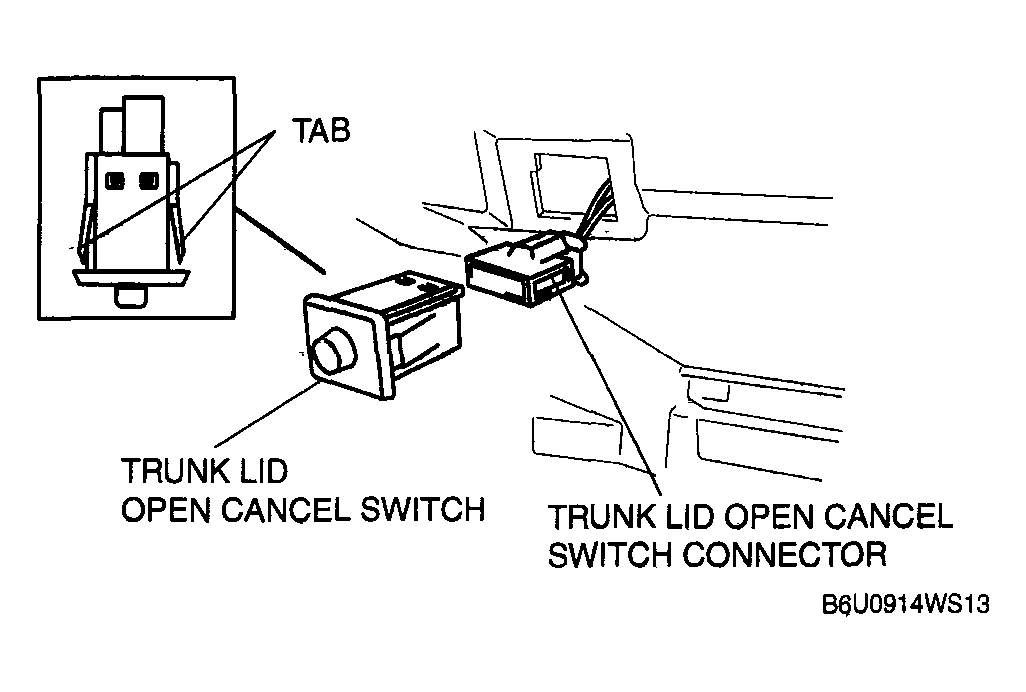

    Fig 1: Trunk Lid Open Cancel Switch
    G04327365Courtesy of MAZDA MOTORS CORP.
